Schneider Electric METSEEM4236B101 Enercept Power Meter 100A, Modbus/BACnet, Class 0.2S
Schneider Electric METSEEM4236B101 Enercept Power Meter 100A, Modbus/BACnet, Class 0.2S
- MPN: METSEEM4236B101
- PPN: SCH-METSEEM4236B101
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$911.97/ EA
Description

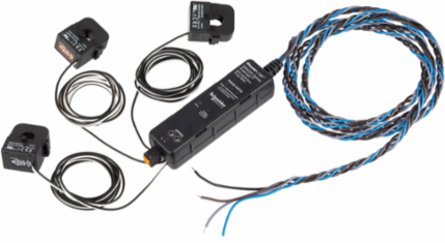

The PowerLogic EM4200 Series Enercept power and energy meter is a unique compact retrofit solution for measuring energy data. This bundle ships with 3, 100 A split-core current transformers. Accuracy calibrated at 1%. ANSI version, fuse packs factory mounted. Designed for simplicity, the EM4200 has flexibility of a wide range of Current Transducers to match most applications from 50-5000A. This billing-rated, four-quadrant meter offers BACnet and Modbus communication protocols and supply power options from 90-480VAC. ANSI C12.1 rated and UL 61010-1.
Specifications
Environment
- Ambient Air Temperature For Operation
- -30-70 °C
- Pollution Degree
- 2
- Relative Humidity
- 0-95 %
- Measurement Category
- category III 277-277 V || category III 300-300 V
Electromagnetic Compatibilityconducted and radiated emissions conforming to FCC part 15 class A || conducted and radiated emissions conforming to EN 61000-6-4 || conducted and radiated emissions conforming to EN 61326 + A1 || immunity to conducted disturbances conforming to EN 61000-6-2 || immunity to conducted disturbances conforming to EN 61326-1 || immunity to radiated fields conforming to EN 61000-6-2 || immunity to radiated fields conforming to EN 61326-1
Ambient Air Temperature For Storage-40-85 °C
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Operating Altitude< 3000 m
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Reach Free Of SvhcYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Complementary
- Network Frequency
- 50 Hz || 60 Hz
- Height
- 152.36 mm
- Number Of Outputs
- 0
- Product Certifications
- CE EN 61010-1 || cULus UL 61010-1 || BTL || ANSI
- Frequency Measurement Range
- 45-65 Hz
- Number Of Inputs
- 0
- Measurement Current
- 0-100 A
- Local Signalling
- status LED green and red) || line fault 3 LED green, orange and red) || dial pointer indication LED yellow) || RX/TX 2 LED green, orange and red)
- Function Available
- external synchronisation to communication || fixed or rolling block
- Measurement Accuracy
- 1 %
- [In] Rated Current
- 100 A
- Width
- 46.63 mm
- Accuracy Class
- class 1 ANSI C12.1 || class 1S IEC 62053-22
Provided Equipmentbracket for support || hook || split core current transducer 3 || fuse
Measurement Voltage90-90 V AC 45...65 Hz minimum per phase || 480-480 V AC 45...65 Hz between phases || 300-300 V AC 45...65 Hz between phase and neutral
StandardsEN 61010-1 || UL 61010-1 || CAN/CSA C22.2 No. 61010-1-12
Communication Port ProtocolModbus RTU 9600 bauds...115200 bauds (automatic detection) || BACnet MS/TP 9600 bauds...115200 bauds (automatic detection)
Communication Of Dataremote control orders || total energy || net energy
Depth35.81 mm
Wire Stripping Length6 mm
Connections - Terminalsinput/output plug-in connector bottom) 0.2-1.5 mm² || current transformer plug-in connector bottom) 0.2-1.5 mm² || communication plug-in connector bottom) 0.2-1.5 mm²
Mounting Modeby screws || clip-on || by hook
Mounting Supportenclosure || DIN rail
Analogue Input Typesplit core current transducer 0.333 V (impedance 33 kOhm) || voltage (impedance 2.5 MOhm)single phase || voltage (impedance 5 MOhm)phase to phase
Display Typewithout display
Metering Typeactive, reactive, apparent energy (signed, four quadrant) || apparent power S, S1, S2, S3 || demand power P, Q, S || active power P, P1, P2, P3 || reactive power Q, Q1, Q2, Q3 || power factor || average current Iavg || peak demand power PM, QM, SM || frequency || voltage U21, U32, U13, V1, V2, V3
Specifications
- Product Or Component Type
- energy meter
- Type Of Cable
- ANSI cable
- Device Application
- power monitoring
Product NamePowerLogic EM4200
RangePowerLogic
Device Short NameEnercept
