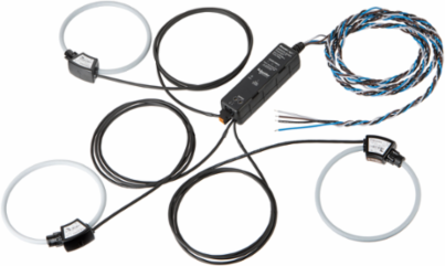

Schneider Electric METSEEM4236A18 Enercept Meter 18 Inch, Class 0.2S, 5000 A, Modbus/BACnet
- MPN: METSEEM4236A18
- PPN: SCH-METSEEM4236A18
CAD
$1227.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The PowerLogic EM4200 Series Enercept power and energy meter is a unique compact retrofit solution for measuring energy data. This bundle ships with 3, 18 inch Rogowski current transformers rated up to 5,000 A. Accuracy calibrated at 1%. ANSI version, fuse packs factory mounted. Designed for simplicity, the EM4200 has flexibility of a wide range of Current Transducers to match most applications from 50-5000A. This billing-rated, four-quadrant meter offers BACnet and Modbus communication protocols and supply power options from 90-480VAC. ANSI C12.1 rated and UL 61010-1.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth35.81 mm
Communications & Management Attributes
- Communication Of Data
- remote control orders, total energy, net energy
Communication Port ProtocolModbus RTU 9600 bauds...115200 bauds (automatic detection), BACnet MS/TP 9600 bauds...115200 bauds (automatic detection)
Physical Attributes
- Wire Stripping Length
- 6 mm
Important Information Attributes
- Electromagnetic Compatibility
- immunity to radiated fields conforming to EN 61326-1, conducted and radiated emissions conforming to FCC Part 15 class A, conducted and radiated emissions conforming to EN 61000-6-4, conducted and radiated emissions conforming to EN 61326 + A1immunity to conducted disturbances conforming to EN 61000-6-2, immunity to conducted disturbances conforming to EN 61326-1, immunity to radiated fields conforming to EN 61000-6-2
- Local Signalling
- status LED green and red), line fault 3 LED green, orange and red)dial pointer indication LED Yellow)RX/TX 2 LED green, orange and red)
- Metering Type
- active, reactive, apparent energy (signed, four quadrant), apparent power S, S1, S2, S3, demand power P, Q, S, active power P, P1, P2, P3, reactive power Q, Q1, Q2, Q3, power factor, average current Iavg, peak demand power PM, QM, SM, frequency, voltage U21, U32, U13, V1, V2, V3
- Mounting Support
- enclosure, DIN rail
- Provided Equipment
- bracket for support, hook, Rogowski coil 3 18 in, fuse
- Connections - Terminals
- input/output plug-in connector bottom) 0.2-1.5 mm², current transformer plug-in connector bottom) 0.2-1.5 mm², communication plug-in connector bottom) 0.2-1.5 mm²
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 1.4308415252147353
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 27 kg CO2 eq., 27.25689279235163
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- DPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2506060EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2036
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Short Name
- Enercept
- Energy Efficiency Optimized
- False
- Frequency Measurement Range
- 45-65 Hz
- Measurement Current
- 50-5000 A
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- energy meter
- Returnability
- Yes
- Sustainable Packaging
- No
- Type Of Cable
- ANSI cable
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Height Nominal
- 152.36 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Function Availableexternal synchronisation to communication, fixed or rolling block
Measurement Categorycategory III 277-277 V, category III 300-300 V
Mounting Modeby screws, clip-on, by hook
Network Frequency50 Hz, 60 Hz
Certificate AgencyCE conforming to EN 61010-1cULus conforming to UL 61010-1, BTL, IEC
Carbon Footprint Of The Distribution Phase [A4]0.2889875926759109, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.021012403171157386, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]57 kg CO2 eq., 57.29884402739639
Local Publishable Date2025-07-10
Stocking FlagY
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Applicationpower monitoring
Display TypeWithout Display
Form Factorsystem calibrated
Measurement Accuracy1 %
Measurement Voltage90-90 V AC 45...65 Hz minimum per phase480-480 V AC 45...65 Hz between phases300-300 V AC 45...65 Hz between phase and neutral
Product NamePowerLogic EM4200
RangePowerLogic
Software Versionv6.2.4
Total Lifecycle Carbon Footprint86 kg CO2 eq.
Pep CodeENVPEP2506060EN
Pep Verification Date2025-10-29
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal46.63 mm
Package Weight(Lbs)1 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Operating Altitude
- < 9842.52 ft (3000 m), < 9842.52 ft (3000 m)
- Reach Free Shvc
- Yes
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -15-60 °C-15-60 °C
- Environmental Disclosure
- ENVPEP2506060EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2506060EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint86.29657834080982
Circularity ProfileENVEOLI2506060EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity0-95 %
Pep Verification Date2025-10-29
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Provided Equipment
- bracket for support, hook, Rogowski coil 3 18 in, fuse
Product Or Component Typeenergy meter
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Number Of Outputs
- 0
Input Attributes
- Analogue Input Type
- Rogowski coil 0.333 V (impedance 33 kOhm), voltage (impedance 2.5 MOhm)single phasevoltage (impedance 5 MOhm)phase to phase
Number Of Inputs0
