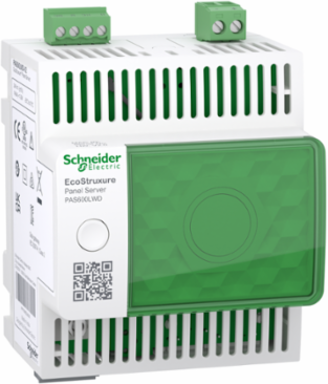

Schneider Electric PAS600LWD EcoStruxure Panel Server Wired by Design - universal concentrator modbus gateway 24 VDC
- MPN: PAS600LWD
- PPN: SCH-PAS600LWD
CAD
$911.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
EcoStruxure Panel Server is a gateway, providing connection of wired smart IoT devices to edge control software or cloud application. The Wired by Design models offer perfect fit for specific application accepting only wired connection. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including Power Meters and Protection devices from Schneider-Electric and third parties. User friendly web-pages offer first-level of monitoring of measurements of all the connected devices including log of all alarms. Simple troubleshooting of the system through embedded web-pages with advanced diagnostic information and logs. Easy commissioning through embedded web-pages or with EcoStruxure Power Commission that will offer commissioning reports and advanced features. 24VDC Power Supply 3W max. parameters are -25°C to +70°C operating temperature, 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC62974-1, Marine certification, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IP40 front face nose and IP30 on others faces. Two 10/100 Base-T Ethernet RJ45 connectors. Modbus RS485 open-style connector. Connector for two Digital Inputs for dry contact or WAGES. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, EcoStruxure Energy Hub, Asset Advisor and Resource Advisor.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, India

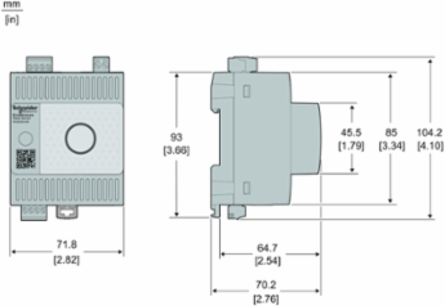

Depth70.2 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus TCP, DHCP, HTTPS, NTP/SNTP, IPv4, IPv6, TCP/IP
- Communication Gateway
- Ethernet/serial
Communication ServiceDevice Profile for Web Services (DPWS), Modbus TCP client, Modbus TCP server, SNTP client, DHCP client, RSTP
Communication Port Support2 RJ45 ETHERNETscrew terminal block RS485
Physical Attributes
- Wire Stripping Length
- power supply: 7 mm, communication: 7 mm, discrete I/O: 7 mm
Important Information Attributes
- Function Available
- embedded web page for configuration and upgrade, diagnosis capabilities, diagnostic report, diagnostics on communication, energy management, with integrated web server, firmware update, backup/restore configuration, configurable event
- Tightening Torque
- discrete I/O: 0.25-0.25 N.mpower supply: 0.6-0.6 N.m, communication: 0.25-0.25 N.m
- Topology
- separated Ethernet network, switched Ethernet network
- Certificate Agency
- CE, cULus, CB, RCM, UKCA, FCC, IC, DNV Marine, IACS E10
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.5 kg CO2 eq., 0.5376758537340084
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 18 kg CO2 eq., 18.433097345691
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- DPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2008001EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2348
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Product Kit Identifier
- N
- Data Retention Time
- 1 month(s)
- Device Short Name
- PAS600LWD
- Mounting Mode
- clip-on
- Number Of Devices
- 64 Modbus TCP/IP
- Product Name
- Panel Server Universal Wired by Design
- Range
- EcoStruxure
- Software Version
- v6.3.4
- Total Lifecycle Carbon Footprint
- 131 kg CO2 eq.
- Pep Code
- ENVPEP2008001EN
- Pep Verification Date
- 2026-03-24
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; India, IN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 1
- Width Nominal
- 72 mm
- Connections - Terminals
- discrete I/O screw terminal block top) 0.14-1.5 mm²power supply screw terminal block top) 1.5-2.5 mm²communication screw terminal block bottom) 0.14-1.5 mm²
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8517620020
Realtime Clockwith RTC-battery set, with user calibration
Time Synchronisation ProtocolNTP, SNTP
Web ServicesHTTPS server, SFTP publication (CSV / JSON), HTTPS publication (CSV / JSON)
Carbon Footprint Of The Distribution Phase [A4]0.1497866504237051, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.13646551818513253, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]111 kg CO2 eq., 111.47919891639178
Local Publishable Date2025-08-08
Stocking FlagN
Device TypeRelay, Control & Measurement - gateway
TraceabilityYes
Average Life Duration10 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticYes
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Data Recordingreal time data monitoring
Device Applicationgateway
Energy Efficiency OptimizedFalse

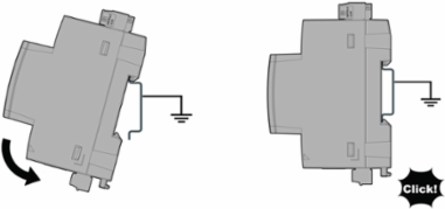

Mounting SupportDIN rail
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typegateway
ReturnabilityYes
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2025-04
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe PAS800 collects and transmits energy and power‑related data from connected wired and wireless IoT devices through Ethernet, Wi‑Fi,Wireless IEEE 802.15.4, and Modbus communication interfaces, with a capacity for up to 64 Modbus devices. & 10It provides real‑time monitoring, diagnostics, and analytics via embedded web pages and onboard processing with data logging capability according to the reference usage scenario and during a reference service life of 10 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh227.76
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal93 mm
[Us] Rated Supply Voltage24 V DC
Number Of Server Device(S)32 Modbus RTU product(s)128 Modbus TCP/IP product(s)
Package Weight(Lbs)242.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C < 6561.68 ft (2000 m), -25-70 °C < 6561.68 ft (2000 m), -25-60 °C 2000...4000 m, -25-60 °C 2000...4000 m-25-70 °C < 6561.68 ft (2000 m), -25-70 °C < 6561.68 ft (2000 m), -25-60 °C 2000...4000 m
- Operating Altitude
- < 5000 m, < 5000 m
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 130.73622428442565
- Derating Factor
- with temperature derating of -1 °C per 200 m 4000...5000 m
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2008001EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI2008001EN
Environmental DisclosureENVPEP2008001EN
Ip Degree Of ProtectionIP40 front face)IP20 casing)
Packaging Without Single Use PlasticYes
Relative Humidity5-95 %
Pep Verification Date2026-03-24
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- gateway
ETIM
- ETIM 8
- EC001099
ETIM 9EC001099
Input Attributes
- Number Of Inputs
- 2-2 digital
Batteries & Runtime Attributes
- Removable Battery
- No
