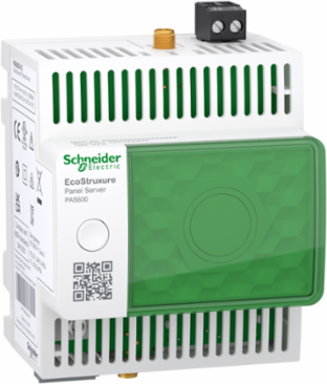

Schneider Electric PAS600 EcoStruxure Panel Server Gateway, 110-277 VAC/DC, 93 mm Height, IP20, Wi-Fi
- MPN: PAS600
- PPN: SCH-PAS600
CAD
$911.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
EcoStruxure Panel Server Gateway, 110-277 VAC/DC, 93 mm Height, IP20, Wi-Fi
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, Germany, France, India, Mexico, United States

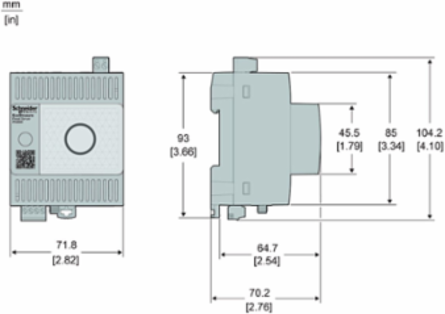

Depth70.2 mm
Communications & Management Attributes
- Communication Gateway
- Ethernet TCP/IP to wireless devices, Ethernet/serial
- Communication Port Protocol
- Modbus TCP, DHCP, HTTPS, NTP/SNTP, IPv4, IPv6, TCP/IP
- Communication Port Support
- 2 RJ45 ETHERNETscrew terminal block RS485
Communication Network TypeHW V2: Wi-Fi infrastructure5 GHz, HW V2: Wi-Fi infrastructure2.4 GHzHW V1: Wi-Fi infrastructure 10/100BASE-T2.4 GHz, Ethernet 10/100BASE-T2.4 GHzWi-Fi access point IEEE 802.15.42.4 GHz, wireless IEEE 802.15.4 even/odd or none parity 1.2...115.2 kbit/sModbus RTU Modbus RTU client even/odd or none parity 1.2...115.2 kbit/s
Communication ServiceDevice Profile for Web Services (DPWS), Modbus TCP client, Modbus TCP server, SNTP client, DHCP client, RSTP
Physical Attributes
- Wire Stripping Length
- power supply: 7 mm, communication: 7 mm
Complementary Attributes
- Maximum Power Consumption In Va
- HW V2: 12 VA at 110...277 VHW V1: 10 VA at 110...277 V
Maximum Power Consumption In WHW V2: 3.5 W 110...277 VHW V1: 3 W 110...277 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Connector Type
- HW V2: connector(s)1 x RP-SMA Wi-Fi for antenna bottomHW V2: connector(s)1 x RP-SMA IEEE 802.15.4 for antenna top, HW V1: connector(s)1 x RP-SMA Wi-Fi for antenna bottom
- Memory Capacity
- HW V2: 32 GB eMMC, HW V1: 512 MB NAND
- Realtime Clock
- with RTC-battery set, with user calibration
- Topology
- separated Ethernet network, switched Ethernet network
- Certificate Agency
- CE, cULus, CB, RCM, UKCA, FCC, IC, DNV Marine, ANSI RF, IACS E10
- Connections - Terminals
- power supply screw terminal block top) 1.5-2.5 mm², communication screw terminal block bottom) 0.14-1.5 mm²
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1627846655431175, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.14830756728384237
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 111 kg CO2 eq., 111.47919891639178
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- DPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2008001EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2348
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Data Retention Time
- 1 month(s)
- Device Short Name
- PAS600
- Mounting Mode
- clip-on
- Number Of Devices
- 64 Modbus TCP/IP
- Product Name
- Panel Server Universal
- Product Specific Application
- Wireless Schneider Electric devices ecosystem
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 132 kg CO2 eq.
- Pep Code
- ENVPEP2008001EN
- Pep Verification Date
- 2026-03-24
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; India, IN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 1
- Width Nominal
- 72 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8517620090
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationResidential, Commercial, Industrial
Function Availableembedded web page for configuration and upgrade, diagnosis capabilities, diagnostic report, diagnostics on communication, energy management, with integrated web server, firmware update, backup/restore configuration, configurable event
Number Of ConnectorsHW V2: 2 screw connector for Wi-Fi and IEEE 802.15.4, HW V1: 1 screw connector for Wi-Fi
Time Synchronisation ProtocolNTP, SNTP
Web ServicesHTTPS server, SFTP publication (CSV / JSON), HTTPS publication (CSV / JSON)
[Us] Rated Supply Voltage110...277 V AC 50/60 Hz, 110...277 V DC
Number Of Server Device(S)32 Modbus RTU product(s)128 Modbus TCP/IP product(s), 40 wireless (IEEE 802.15.4) product(s) - mixed85 wireless (IEEE 802.15.4) product(s) - depending on configuration
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5843336757522488, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]20 kg CO2 eq., 20.032663644284018
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
Local Publishable Date2025-06-18
Stocking FlagN
Device TypeRelay, Control & Measurement - gateway
TraceabilityYes
Average Life Duration10 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticYes
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier1
Function OptionStandard
Data Recordingreal time data monitoring
Device Applicationgateway
Energy Efficiency OptimizedFalse

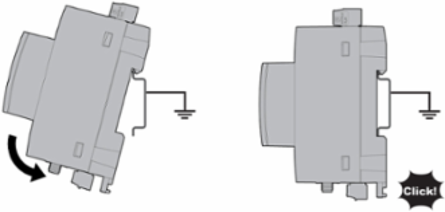

Mounting SupportDIN rail
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typegateway
RangeEcoStruxure
Software Versionv6.3.4
Tightening Torquepower supply: 0.6-0.6 N.mcommunication: 0.25-0.25 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2025-04
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe PAS800 collects and transmits energy and power‑related data from connected wired and wireless IoT devices through Ethernet, Wi‑Fi,Wireless IEEE 802.15.4, and Modbus communication interfaces, with a capacity for up to 64 Modbus devices. & 10It provides real‑time monitoring, diagnostics, and analytics via embedded web pages and onboard processing with data logging capability according to the reference usage scenario and during a reference service life of 10 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh227.76
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal93 mm
Halogen-free StatusHalogen free plastic parts and cables product
Package Weight(Lbs)263.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 132.407288469255
- Circularity Profile
- ENVEOLI2008001EN
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP40 front face)IP20 casing)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2008001EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Operating Altitude< 6561.68 ft (2000 m), < 6561.68 ft (2000 m)
Halogene PerformanceHalogen free plastic parts & cables product
China Rohs RegulationX
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP2008001EN
Halogen Content PerformanceHalogen free plastic parts & cables product
Packaging Made With Recycled CardboardYes
Product Compatibilitywireless access point
Relative Humidity5-95 %
Pep Verification Date2026-03-24
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- gateway
ETIM
- ETIM 8
- EC001099
ETIM 9EC001099
Input Attributes
- Number Of Inputs
- 0-0
Batteries & Runtime Attributes
- Removable Battery
- No
