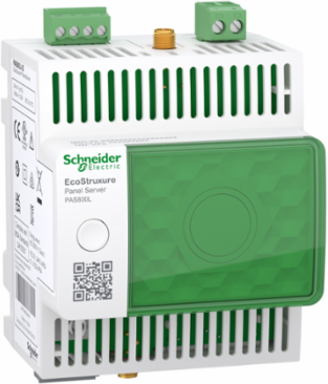

Schneider Electric PAS800L EcoStruxure Panel Server Gateway, 24VDC, IP20, DIN Rail Mount, Compact Size
- MPN: PAS800L
- PPN: SCH-PAS800L
CAD
$2499.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
EcoStruxure Panel Server Gateway, 24VDC, IP20, DIN Rail Mount, Compact Size
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, India, Singapore, United States

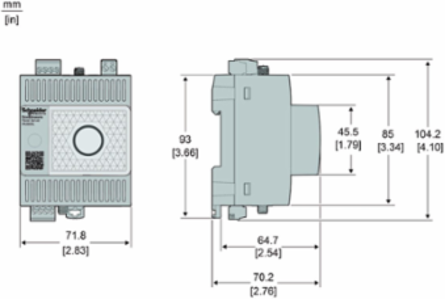

Depth70.2 mm
Communications & Management Attributes
- Communication Gateway
- Ethernet TCP/IP to wireless devices, Ethernet/serial
- Communication Service
- Device Profile for Web Services (DPWS), Modbus TCP client, Modbus TCP server, SNTP client, DHCP client, web server (energy & operation efficiency), RSTP
Communication Port ProtocolModbus TCP, DHCP, HTTPS, NTP/SNTP, IPv4, IPv6, TCP/IP
Communication Port Support2 RJ45 ETHERNETscrew terminal block RS485
Physical Attributes
- Wire Stripping Length
- power supply: 7 mm, communication: 7 mm, discrete I/O: 7 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Data Recording
- historical dashbaording and trending, 3 years data logs
- Function Available
- embedded web page for configuration and upgrade, diagnosis capabilities, diagnostic report, diagnostics on communication, embedded data logger, Event Logger, energy management, with integrated web server, firmware update, configurable event, backup/restore configuration, CSV export
- Tightening Torque
- discrete I/O: 0.25-0.25 N.mpower supply: 0.6-0.6 N.m, communication: 0.25-0.25 N.m
- Topology
- separated Ethernet network, switched Ethernet network
- Certificate Agency
- CE, cULus, CB, RCM, UKCA, FCC, IC, DNV Marine, ANSI RF, IACS E10
- Carbon Footprint Of The Distribution Phase [A4]
- 0.15288141592832707, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.13928505368482533
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 111 kg CO2 eq., 111.47919891639178
- Local Data Status
- Publishable
- Pre Comm Date
- 2022-04-13
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - gateway
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- Yes
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Tier
- 1
- Function Option
- Standard
- Data Retention Time
- 3 month(s)
- Energy Efficiency Optimized
- False

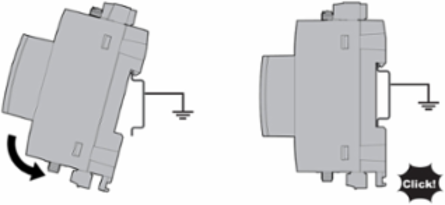

- Mounting Support
- DIN rail
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- gateway
- Range
- EcoStruxure
- Software Version
- v6.3.4
- Total Lifecycle Carbon Footprint
- 131 kg CO2 eq.
- Pep Code
- ENVPEP2008001EN
- Pep Verification Date
- 2026-03-24
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; India, IN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 1
- Width Nominal
- 72 mm
- Connections - Terminals
- discrete I/O screw terminal block top) 0.14-1.5 mm²power supply screw terminal block top) 1.5-2.5 mm²communication screw terminal block bottom) 0.14-1.5 mm²
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8517620020
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationResidential, Commercial, Industrial
Device Applicationgateway & energy server, data logger
Realtime Clockwith RTC-battery set, with user calibration
Time Synchronisation ProtocolNTP, SNTP
Web ServicesHTTPS server, SFTP publication (CSV / JSON), HTTPS publication (CSV / JSON), alarm notification by e-mail
Number Of Server Device(S)32 Modbus RTU product(s)128 Modbus TCP/IP product(s), 40 wireless (IEEE 802.15.4) product(s) - mixed85 wireless (IEEE 802.15.4) product(s) - depending on configuration
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5487848589764466, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]19 kg CO2 eq., 18.81394646440362
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
Local Publishable Date2025-08-08
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionDPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2008001EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2429
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NamePAS800L
Mounting Modeclip-on
Number Of Devices64 Modbus TCP/IP
Product NamePanel Server Advanced
Product Specific ApplicationWireless Schneider Electric devices ecosystem
ReturnabilityYes
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2025-04
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe PAS800 collects and transmits energy and power‑related data from connected wired and wireless IoT devices through Ethernet, Wi‑Fi,Wireless IEEE 802.15.4, and Modbus communication interfaces, with a capacity for up to 64 Modbus devices. & 10It provides real‑time monitoring, diagnostics, and analytics via embedded web pages and onboard processing with data logging capability according to the reference usage scenario and during a reference service life of 10 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh227.76
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal93 mm
[Us] Rated Supply Voltage24 V DC
Halogen-free StatusHalogen free plastic parts and cables product
Package Weight(Lbs)247.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C < 6561.68 ft (2000 m), -25-70 °C < 6561.68 ft (2000 m), -25-60 °C 2000...4000 m, -25-60 °C 2000...4000 m-25-70 °C < 6561.68 ft (2000 m), -25-70 °C < 6561.68 ft (2000 m), -25-60 °C 2000...4000 m
- Operating Altitude
- < 5000 m, < 5000 m
- Halogene Performance
- Halogen free plastic parts & cables product
- China Rohs Regulation
- X
- Carbon Footprint
- 131.13409670938498
- Derating Factor
- with temperature derating of -1 °C per 200 m 4000...5000 m
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP40 front face)IP20 casing)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2008001EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2008001EN
Environmental DisclosureENVPEP2008001EN
Halogen Content PerformanceHalogen free plastic parts & cables product
Packaging Made With Recycled CardboardYes
Product Compatibilitywireless access point
Relative Humidity5-95 %
Pep Verification Date2026-03-24
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- gateway
ETIM
- ETIM 8
- EC001099
ETIM 9EC001099
Input Attributes
- Number Of Inputs
- 2-2 digital
Batteries & Runtime Attributes
- Removable Battery
- No
