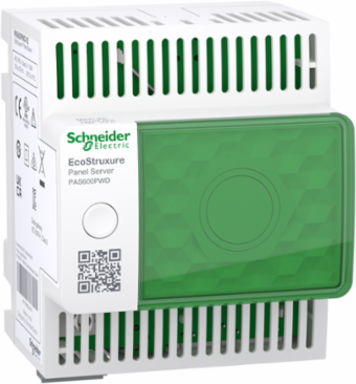

Schneider Electric PAS600PWD EcoStruxure Panel Server Wired by Design - universal concentrator modbus gateway POE
- MPN: PAS600PWD
- PPN: SCH-PAS600PWD
CAD
$911.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
EcoStruxure Panel Server is a gateway, providing connection of wired smart IoT devices to edge control software or cloud application. The Wired by Design models offer perfect fit for specific application accepting only wired connection. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including Power Meters and Protection devices from Schneider-Electric and third parties. User friendly web-pages offer first-level of monitoring of measurements of all the connected devices including log of all alarms. Simple troubleshooting of the system through embedded web-pages with advanced diagnostic information and logs. Easy commissioning through embedded web-pages or with EcoStruxure Power Commission that will offer commissioning reports and advanced features. PoE Power Supply 3.5W max. parameters are -25°C to +70°C operating temperature, up to 93% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC62974-1, Marine certification, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IP40 front face nose and IP30 on others faces. Two 10/100 Base-T Ethernet RJ45 connectors. Modbus RS485 open-style connector. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, EcoStruxure Energy Hub, Asset Advisor and Resource Advisor.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, India

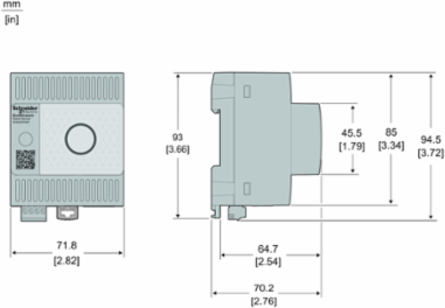

Depth70.2 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus TCP, DHCP, HTTPS, NTP/SNTP, IPv4, IPv6, TCP/IP
- Communication Gateway
- Ethernet/serial
Communication ServiceDevice Profile for Web Services (DPWS), Modbus TCP client, Modbus TCP server, SNTP client, DHCP client, DHCP server, RSTP
Communication Port Support2 RJ45 ETHERNETscrew terminal block RS485
Physical Attributes
- Wire Stripping Length
- power supply: 7 mm, communication: 7 mm
Important Information Attributes
- Function Available
- embedded web page for configuration and upgrade, diagnosis capabilities, diagnostic report, diagnostics on communication, energy management, with integrated web server, firmware update, backup/restore configuration, configurable event
- Time Synchronisation Protocol
- NTP, SNTP
- Web Services
- HTTPS server, SFTP publication (CSV / JSON), HTTPS publication (CSV / JSON)
- Connections - Terminals
- power supply screw terminal block top) 1.5-2.5 mm², communication screw terminal block bottom) 0.14-1.5 mm²
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.5 kg CO2 eq., 0.5376758537340084
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 18 kg CO2 eq., 18.433097345691
- Local Data Status
- Publishable
- Pre Comm Date
- 2024-02-19
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - gateway
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- Yes
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Data Recording
- real time data monitoring
- Device Application
- gateway
- Energy Efficiency Optimized
- False
- Mounting Support

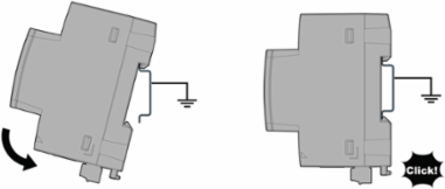

- DIN rail
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- gateway
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 131 kg CO2 eq.
- Pep Code
- ENVPEP2008001EN
- Pep Verification Date
- 2026-03-24
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; India, IN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 1
- Width Nominal
- 72 mm
- Number Of Server Device(S)
- 32 Modbus RTU product(s)128 Modbus TCP/IP product(s)
- Package Weight(Lbs)
- 242.000 g
- Warranty (In Months)
- 18
Realtime Clockwith RTC-battery set, with user calibration
Topologyseparated Ethernet network, switched Ethernet network
Certificate AgencyCE, cULus, CB, RCM, UKCA, FCC, IC, DNV Marine, IACS E10
Carbon Footprint Of The Distribution Phase [A4]0.1497866504237051, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.13646551818513253, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]111 kg CO2 eq., 111.47919891639178
Local Publishable Date2025-08-08
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionDPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2008001EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2348
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Product Kit IdentifierN
Data Retention Time1 month(s)
Device Short NamePAS600PWD
Mounting Modeclip-on
Number Of Devices64 Modbus TCP/IP
Product NamePanel Server Universal Wired by Design
RangeEcoStruxure
Software Versionv6.3.4
Tightening Torquepower supply: 0.6-0.6 N.mcommunication: 0.25-0.25 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2025-04
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe PAS800 collects and transmits energy and power‑related data from connected wired and wireless IoT devices through Ethernet, Wi‑Fi,Wireless IEEE 802.15.4, and Modbus communication interfaces, with a capacity for up to 64 Modbus devices. & 10It provides real‑time monitoring, diagnostics, and analytics via embedded web pages and onboard processing with data logging capability according to the reference usage scenario and during a reference service life of 10 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh227.76
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal93 mm
[Us] Rated Supply VoltagePoE
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8517620020
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Take Back
- No
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- -25-70 °C-25-70 °C
- Environmental Disclosure
- ENVPEP2008001EN
- Ip Degree Of Protection
- IP40 front face)IP20 casing)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 0-93 %
- Pep Verification Date
- 2026-03-24
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Operating Altitude< 2300 m, < 2300 m
Recycled Metal Content At Cr Level0 %
Carbon Footprint130.73622428442565
Circularity ProfileENVEOLI2008001EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2008001EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- gateway
ETIM
- ETIM 8
- EC001099
ETIM 9EC001099
Input Attributes
- Number Of Inputs
- 0-0
Batteries & Runtime Attributes
- Removable Battery
- No
