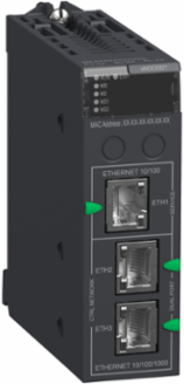

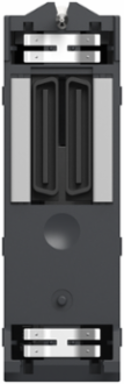

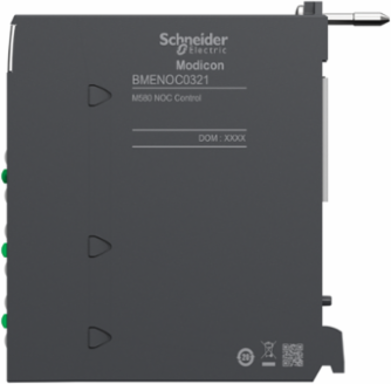

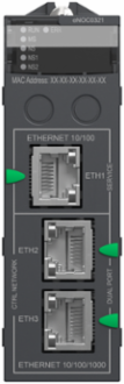

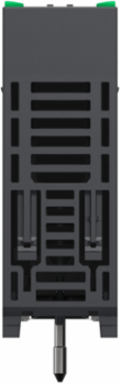

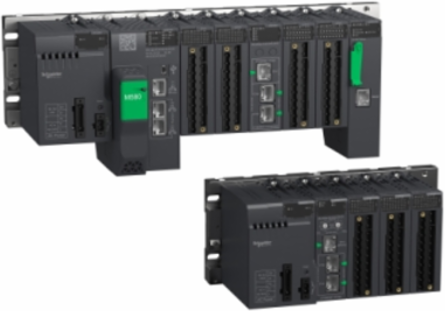

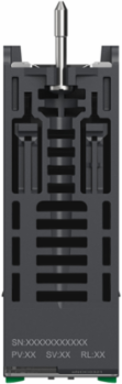

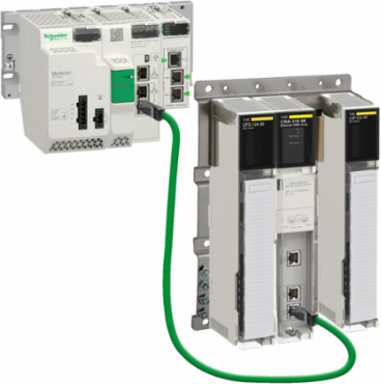

Schneider Electric BMENOC0321 Modicon M580 Ethernet Communication Module, IP20, 0.2 Kg
- MPN: BMENOC0321
- PPN: SCH-BMENOC0321
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module has 3 subnets with IP forwarding function. It is integrated with 3 Ethernet RJ45 connectors. Communication services are bandwidth management, FDR server, Modbus TCP I/O scanner and messaging, EtherNet/IP I/O scanner and messaging, embedded 4-port switch, RSTP support and IP forwarding. It is a communication module with a current consumption of 555mA, works with internal power supply. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This connection sub-base is compatible with BMEXBPxxx - Ethernet + X-bus rack. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Communications & Management Attributes
- Communication Service
- bandwidth management, FDR server, Modbus TCP I/O Scanner and Messaging, Ethernet/IP I/O Scanner and Messaging, embedded 4-port switch, RSTP support, IP forwarding
Complementary Attributes
- Integrated Connection Type
- 3 Ethernet RJ45 10/100/1000 Mbps double shielded twisted pair
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Local Signalling
- 1 LED (green) for processor running (RUN)1 LED (red) for processor or system fault (ERR)1 LED (green/red) for ETH MS (Ethernet port configuration status), 1 LED (green/red) for Eth NS (Ethernet network status), 1 LED (green/red) for Eth NS1 (Ethernet network status), 1 LED (green/red) for Eth NS2 (Ethernet network status)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.033476, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.10191, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 184 kg CO2 eq., 183.95
- Local Publishable Date
- 2026-01-23
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Use Carbon Footprint
- 183.95
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2402021EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Current Consumption
- 1800 mA 3.3 V DC
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Supply
- internal power supply via rack
- Total Lifecycle Carbon Footprint
- 202 kg CO2 eq.
- Web Server
- advanced
- Pep Code
- ENVPEP2402021EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 32
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]
- 1.1408
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 183.79
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 183.95
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 212.75
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 3755.8
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -9.5482
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 2536.2
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -32.038
- Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 4.1827
- Impacts Related To Land Use/Soil Quality (-) Total Life Cycle
- 2694386
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Total Life Cycle
- 1412968
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 136.17
- Net Use Of Fresh Water (M3) Total Life Cycle
- 1416106
- Non-hazardous Waste Disposed Of (Kg) Total Life Cycle
- 3554365
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 28404
- Terrestrial Eutrophication (Mole Of N Equiv) Total Life Cycle
- 1765512
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 3979911
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]
- 10608
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
- 98339
- Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
- 4531895
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 11369
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 10021
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 5519993
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 544.11
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 31907
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 209.55
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 3755.8
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -95482
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 11162
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 5508832
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 544.11
- Water Use (M3 Eq) Operational Energy Use [B6]
- 70245
- Customs Code
- 8517620090
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Memory Usageapplication saving, activating the advanced web server
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.412
Carbon Footprint Of The Manufacturing Phase [A1 To A3]17 kg CO2 eq., 17.436
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Manufacturing Carbon Footprint17.436
End Of Life Carbon Footprint0.412
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
MarkingCE
Product Or Component Typecommunication module
Range Of ProductModicon M580
Software Versionv5.9.4
Sustainable PackagingNo
Transmission Support MediumEthernet backplane
Web ServicesFactoryCast configurable
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh325.215
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Water Use (M3 Eq); Total Life Cycle5551564
Package Weight(Lbs)253.000 g
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]17.412
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]17.436
Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]0.412
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]1.0608
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]9.8339
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]231.94
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]83.882
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]72.258
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-3.691
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]21931
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]51137
Materials For Recycling (Kg) Installation [A5]0.056
Net Use Of Fresh Water (M3) End Of Life [C1-c4]11183
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]67365
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-22107
Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]16233
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]212.75
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]3755.8
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-95482
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]220.37
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]4299.9
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-10217
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]76259
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle31907
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle3976711
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]10608
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]98339
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle11162
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-10116
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]65098
Water Use (M3 Eq) Manufacturing [A1-a3]57225
Water Use (M3 Eq) End Of Life [C1-c4]42725
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2402021EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
China Rohs RegulationX
Carbon Footprint201.933385999999
Circularity ProfileENVEOLI2402021EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product CompatibilityBMEXBP... - Ethernet + X-bus rack
Pep CodeENVPEP2402021EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- communication module
Range Of ProductModicon M580
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
