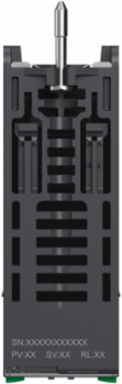

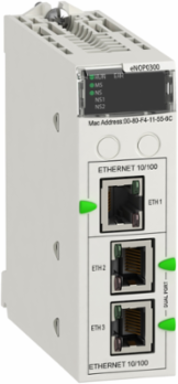

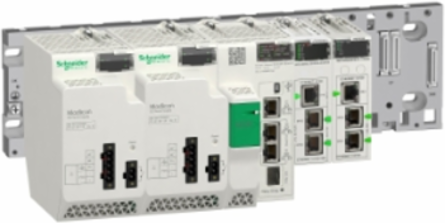

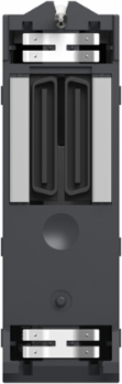

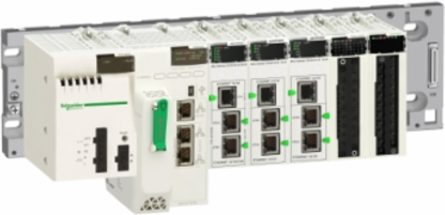

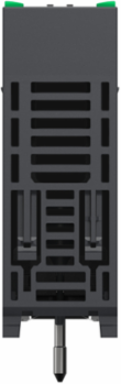

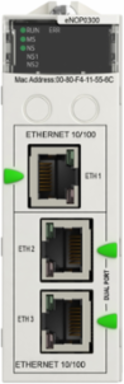

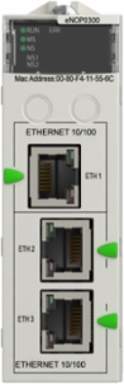

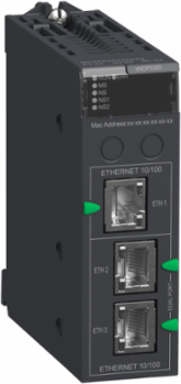

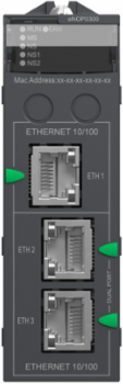

Schneider Electric BMENOP0300 Modicon M580 Communication Module, 10/100 Mbps, 0.24 kg

  • MPN: BMENOP0300
  • PPN: SCH-BMENOP0300
  • UNSPSC: 32151705
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This communication module is part of the Modicon M580 range, an offer of PACs with built-in Ethernet and communication modules. This communication module offers ethernet cable for transmission support medium with 10Mbps and 100Mbps transmission rate. It is interfaced with 3 Ethernet 10/100BASE-TX. This communication module enables M580 platform to proceed to IEC 61850-compliant data exchange. It features MMS messaging client for IEC 61850, MMS messaging server for IEC 61850, Goose for IEC 61850, Modbus TCP messaging, RSTP support etc. It weighs 0.24kg. It is suitable for medium to large process applications. It is compatible with M580 PAC. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data. Modicon M580 ePAC is the controller which can help hybrid manufacturers achieve better, measurable and earlier ROI.

Features

  • IEC 61850 Server and Client, allowing it to interface with SCADA system and/or IEDs
  • Compliance with IEC61850 Edition 1.0 and 2.0
  • Support RSTP and dual network configuration by IP forwarding feature
  • Support for Hot Standby Configurations
  • Provides IED Configuration Tool

Documentation & Downloads

Specifications

Key Specifications

Country of OriginFrance
Weight254 g

Communications & Management Attributes

Communication ServiceMMS messaging client IEC 61850, MMS messaging server IEC 61850, goose IEC 61850, Modbus TCP messaging, RSTP support, IP forwarding

Important Information Attributes

Persona Type IdsEU, OM8, SI
Transmission Rate10 Mbit/s, 100 Mbit/s
Carbon Footprint Of The End Of Life Phase C1 To C40.4 kg CO2 eq., 0.40878125
Carbon Footprint Of The Manufacturing Phase A1 To A317 kg CO2 eq., 17.29978125
Local Data StatusPublishable
Return IndicatorY
ServiceabilityNo
Field Service DivisionIDIBS
Use Carbon Footprint183.95
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402021EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Current Consumption1250 mA 3.3 V DC internal
Module Formatstandard
Product Or Component Typecommunication module
ReturnabilityYes
Sustainable PackagingNo
Transmission Support Mediumethernet cable
Database Version2022-01
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %32
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Carbon Footprint Of The Distribution Phase A40.0332144687, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.1011138281, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6184 kg CO2 eq., 183.95
Local Publishable Date2026-07-27
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Environmental Characteristicstandard environment
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon M580
Software Versionv5.9.4
Total Lifecycle Carbon Footprint202 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Sourceextrapolated product
Customs Code8517620090
Functional Unit DescriptionThe Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional Unit UnitUnit
Energy Consumption On Product Lifetime In Kwh325.215

Environment Attributes Main

Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP2402021EN
Packaging Made With Recycled CardboardYes
Product CompatibilityM580 PAC
Relative Humidity0-95 % without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take BackNo
China Rohs RegulationX
Carbon Footprint201.7928907969
Circularity ProfileENVEOLI2402021EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2402021EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Typecommunication module
Range Of ProductModicon M580

ETIM

ETIM 8EC001423
ETIM 10EC001423
ETIM 9EC001423
