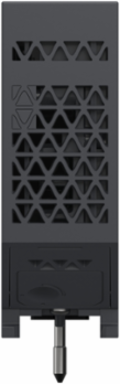

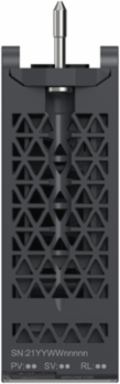

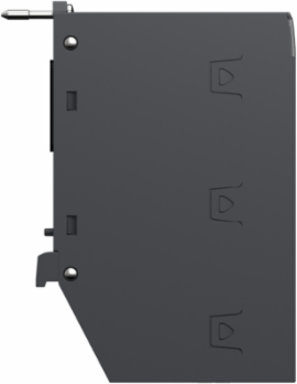

Schneider Electric BMENUA0100H Modicon M580 Communication Module, IP20, Conformal Coating, 86.05 mm Length
- MPN: BMENUA0100H
- PPN: SCH-BMENUA0100H
CAD
$3092.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This module is an Ethernet communications module with an embedded OPC UA server for communication with OPC UA clients, including SCADA. It can be used in severe environments. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. It supports HTTPS protocol. It offers cybersecurity setting service. It weighs 0.383kg. It brings high-performance OPC UA capabilities to Modicon M580 ePAC systems. This product conforms to the OPC UA V1.03 standard. It can be installed either on an Ethernet or a X-bus rack. The module is delivered in 1 packing unit. It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Communications & Management Attributes
- Communication Network Type
- IPV6, IP forwarding (Front port and backplane), service forwarding, network segmentation
Communication ServiceModbus TCP server for module diagnostics, network management SNMP agent V1 and V3, time synchronization NTP V4 - Client and Server
Complementary Attributes
- Integrated Connection Type
- 1 Ethernet RJ45 10/100/1000 Mbit/s double shielded twisted pair
Maximum Number Of Modules Per Rack2
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Cybersecurity
- secure communication (HTTPS), built-in firewall, certificate based authentication, system hardening, role-based access control, Syslog protocol support, IPSec (initiator and responder role), network physical isolation, Achilles level 2 tested, certificate management (self-signed and PKI)
- Local Signalling
- 1 LED (green) for processor running (RUN)1 LED (red) for processor or system fault (ERR)1 LED (green/red) for ETH MS (Ethernet port configuration status), 1 LED (green/red) for Eth NS (Ethernet network status), 1 LED (green/red) for status (STS)1 LED (yellow) for communication data bus
- Source Timestamping
- only digital IOs or variables, 250 ms, minimum polling of buffer, 5000 ms, maximum polling of buffer
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0523064, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.134152
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 147 kg CO2 eq., 147.06
- Local Publishable Date
- 2026-06-14
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Use Carbon Footprint
- 147.06
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current Consumption
- 155 mA 24 V DC
- Environmental Characteristic
- hazardous location class I division 2
- Marking
- CE
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- conformal coating
- Returnability
- Yes
- Slot Occupied By Module
- 1
- Supply
- internal power supply via rack
- Total Lifecycle Carbon Footprint
- 178 kg CO2 eq.
- Vibration Resistance
- 3 gn
- Pep Code
- ENVPEP2309052EN
- Pep Verification Date
- 2023-09-27
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 32

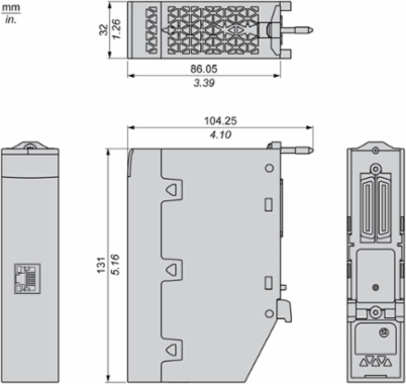

- Length Total
- 86.05 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 30.2104
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 30.248
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 3400.5628
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 3041.2
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -13.8056
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 1950.4
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -57.984
- Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 3.2189
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 114.16
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 22.412
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 3400.5628
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 3041.2
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -13.8056
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 3475.6
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -14.3272
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 434.44
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 344.272
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 11.1784
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 11.1072
- Customs Code
- 8517620090
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Function AvailableCCOTF (configuration change on the fly), hot swappable module, Advanced diagnostic information (DDT, web pages, OPC UA objects), SCADA connection through Modbus TCP
Opc UaOPC UA server, 10 clients connection max, 50000 monitored item max in standard sampling mode, 2000 monitored item max in fast sampling mode, 40 maximum subscriptions per session, 250 ms, minimum publishing interval in standard sampling mode, 20 ms, minimum sampling interval in fast sampling mode, 20 ms, minimum publishing interval in fast sampling mode, 125 ms, sampling interval in standard sampling mode, 100000, maximum number of nodes, hot redundancy mode
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy, ATEX, IECEx
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.41756, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]30 kg CO2 eq., 30.248
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Manufacturing Carbon Footprint30.248
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2309052EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2048
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Backplane Slot LocationEthernet + X-bus Slot
Device ApplicationOPC UA server & IT control network
Exchange Modehalf duplex and full duplex
Mounting Locationmain rack
Product Or Component Typecommunication module
Range Of ProductModicon M580
Shock Resistance30 gn
Software Versionv5.9.4
Sustainable PackagingYes
Transmission Support MediumEthernet backplane
Web Serverfor commissioning, operational and maintenance
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe OPC UA module allows data communication with any Client in accordance with the OPC UA Client/Server standard. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 3,36W (140 mA at 24 V DC).& 10& 10IEC 61000-6-5, IEC 61850-3
Functional-unit UnitEACH
Energy Consumption On Product Lifetime In Kwh264.9024
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Height Nominal131 mm
Width Nominal32 mm
Package Weight(Lbs)270.000 g
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]146.93
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]147.06
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]347.256
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]11.1784
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]441.496
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]82.128
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]69.7488
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]1.845
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]11.5864
Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]1.2644
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]347.256
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]11.1784
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]360.592
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]11.3608
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]13.3376
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle3397.5788
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]3041.2
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-13.8056
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]434.44
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 177.9120184
- Environmental Disclosure
- ENVPEP2309052EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2309052EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Product CompatibilityModicon M580 standalone CPU (BMEP58…..), Modicon M580 Redundant CPU (BMEH58…..), Modicon M580 safety CPU (non interfering type 1) (BMEP582…..), Modicon M580 safety Redundant CPU (non interfering type 1) (BMEH582…..), Modicon X80 Rack with Ethernet backplane (BMEXBP…..)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2309052EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)2000 m...5000 m with derating factor
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % 55-55 °C without condensation
Pep Verification Date2023-09-27
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- communication module
Range Of ProductModicon M580
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
