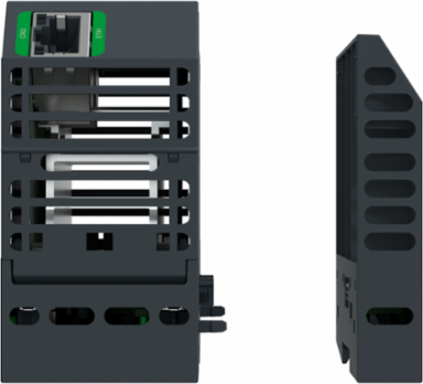

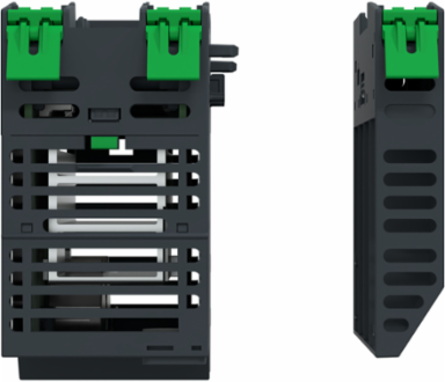

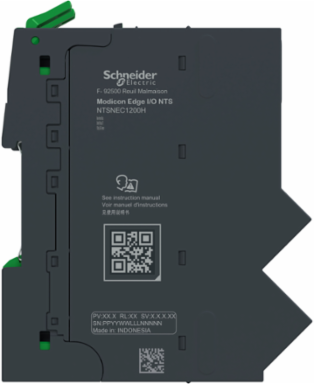

Schneider Electric NTSNEC1200HK Network Interface Module + Base + Termination, EtherNet/IP, Modbus TCP, 100Mbps, 2 RJ45, Hardened, Modicon Edge I/O NTS
- MPN: NTSNEC1200HK
- PPN: SCH-NTSNEC1200HK
CAD
$1140.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

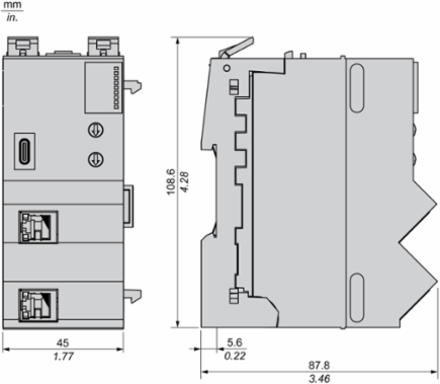

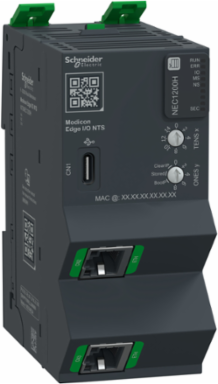

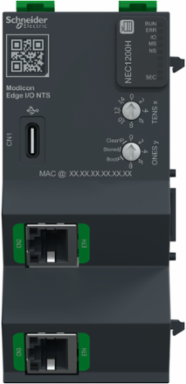

This network interface kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and an network interface module. It functions as a Network Interface for a cluster utilizing EtherNet/IP and Modbus TCP protocols. It facilitates communication between devices and networks through connectivity, Data Transmission, and Network Management. It functions within a temperature range of minus 40 to 70 degrees Celsius. Its IP degree of protection is IP20. It measures 116mm high, 45mm wide, 84mm deep, and weighs 0.363kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Depth84 mm
Communications & Management Attributes
- Communication Service
- secure boot, secure storage (via TPM), SCEP client (pending), CAE Support, secure syslog server (pending), TLS 1.2, Embedded TPM, DPWS (IPv6), configuration, web server, FDR client, BOOTP, DHCP client, IPV4, EtherNet/IP Server, Modbus TCP server, OPCUA server (explicit only), SNMP (pending), Crashlog, NTP v4, RSTP support, static VLAN configuration, Quality of Service (QoS), USB RNDIS
Complementary Attributes
- Integrated Connection Type
- Ethernet/IP, Modbus TCP, USB 2.0 port
Important Information Attributes
- Exchange Mode
- full duplex, autonegotiation
- Local Signalling
- 1 LED (green) for RUN1 LED (red) for ERR1 LED (green/red) for I/O, 1 LED (green/red) for MS, 1 LED (green/red) for NS, 1 LED (green/red) for cyber security (SEC)
- Topology
- daisy chain, star, ring (using rstp)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.7752639311966184, 0.8 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 40 kg CO2 eq., 39.983683261690295
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2024-12-19
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- conformal coating
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Transmission Rate
- 10/100 Mbit/s
- Pep Code
- ENVPEP2409028EN
- Pep Verification Date
- 2024-10-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 100 mm
- Number Of Addressable I/O Module
- 32-32 modules
- Package Weight(Lbs)
- 391.000 g
- Warranty (In Months)
- 18

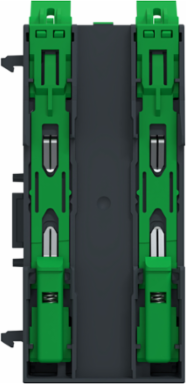

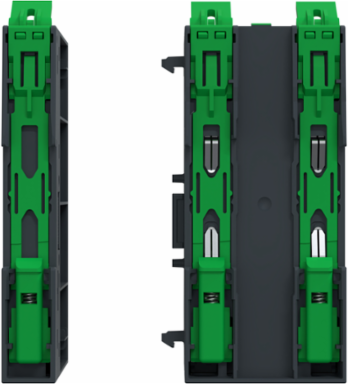

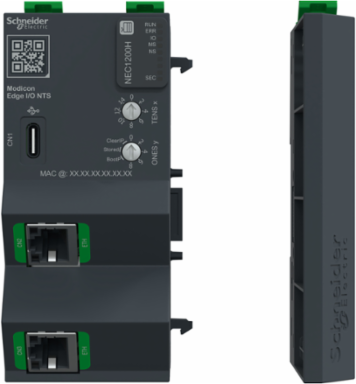

Kit CompositionNTSNEC1200 NIM, NTSXBA0301H base, NTSXMP0000H termination
MarkingCE, UKCA, cULus, RCM
Carbon Footprint Of The Distribution Phase [A4]0.4801028159242508, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0007236543231978917
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]81 kg CO2 eq., 80.84434551319164
Local Publishable Date2026-01-12
Pre Comm Date2024-12-19
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2409028EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2439
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Connector Type2 RJ45 switched ethernet isolated portsUSB type C 1
Product Or Component Typenetwork interface module
Range Of ProductModicon Edge I/O NTS
Software Versionv6.1
Total Lifecycle Carbon Footprint122 kg CO2 eq.
Web Serverembedded
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo manage I/O modules and connect them to the main PLC using network distributed architecture in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 2.8 W (120mA at 24 VDC). To manage I/O modules and connect them to the main PLC using network distributed architecture in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 2.8 W (120mA at 24 VDC).
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh151.3728
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal45 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8517620090
Environment Attributes Main
- Directives
- 2014/35/EU - directive basse tension, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C-40-70 °C
- Circularity Profile
- ENVEOLI2409028EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m) without derating2000 m...5000 m with derating
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % without condensation
- Pep Verification Date
- 2024-10-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Carbon Footprint122.084119176326
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2409028EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2409028EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- network interface module
Range Of ProductModicon Edge I/O NTS
ETIM
- ETIM 8
- EC001603
ETIM 9EC001603
