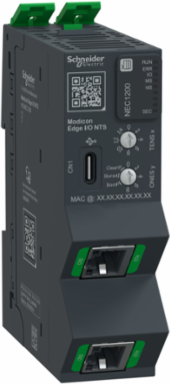

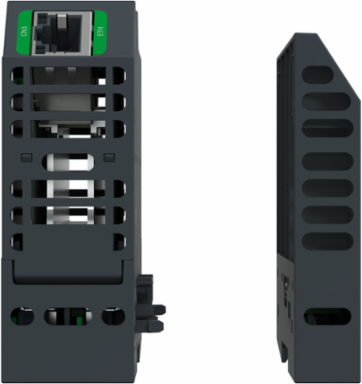

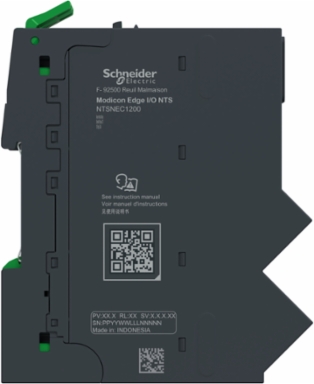

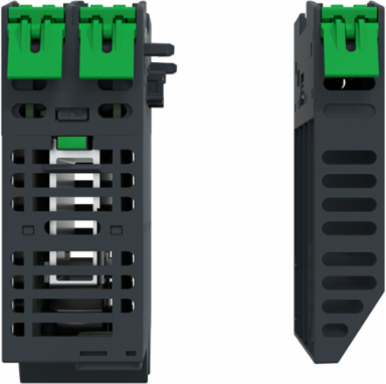

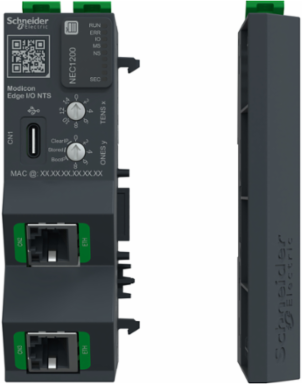

Schneider Electric NTSNEC1200K Network Interface Module + Base + Termination, EtherNet/IP, Modbus TCP, 100Mbps, 2 RJ45, Modicon Edge I/O NTS
- MPN: NTSNEC1200K
- PPN: SCH-NTSNEC1200K
CAD
$856.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

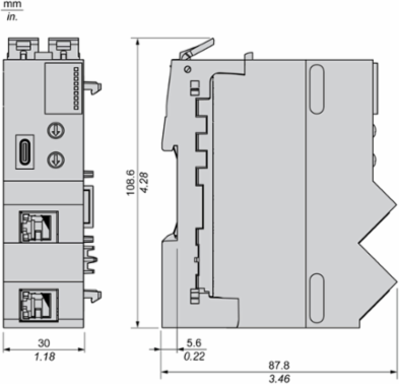

This network interface kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and an network interface module. It functions as a Network Interface for a cluster utilizing EtherNet/IP and Modbus TCP protocols. It facilitates communication between devices and networks through connectivity, Data Transmission, and Network Management. It functions within a temperature range of minus 40 to 70 degrees Celsius. Its IP degree of protection is IP20. It measures 116mm high, 30mm wide, 84mm deep, and weighs 0.306kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, Indonesia, Philippines, United States |
|---|
| Depth | 84 mm |
|---|
Communications & Management Attributes
| Communication Service | secure boot, secure storage (via TPM), SCEP client (pending), CAE Support, secure syslog server (pending), TLS 1.2, Embedded TPM, DPWS (IPv6), configuration, web server, FDR client, BOOTP, DHCP client, IPV4, EtherNet/IP Server, Modbus TCP server, OPCUA server (explicit only), SNMP (pending), Crashlog, NTP v4, RSTP support, static VLAN configuration, Quality of Service (QoS), USB RNDIS |
|---|
Physical Attributes
| Housing Color | grey |
|---|
Complementary Attributes
| Integrated Connection Type | Ethernet/IP, Modbus TCP, USB 2.0 port |
|---|
Important Information Attributes
| Exchange Mode | full duplex, autonegotiation |
|---|---|
| Local Signalling | 1 LED (green) for RUN1 LED (red) for ERR1 LED (green/red) for I/O, 1 LED (green/red) for MS, 1 LED (green/red) for NS, 1 LED (green/red) for cyber security (SEC) |
| Topology | daisy chain, star, ring (using rstp) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.6571045803022655, 0.7 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 34 kg CO2 eq., 33.88969917387835 |
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2024-12-19 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon Edge I/O NTS |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 116 kg CO2 eq. |
| Web Server | embedded |
| Pep Code | ENVPEP2409028EN |
| Pep Verification Date | 2024-10-09 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Indonesia, ID |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Height Nominal | 100 mm |
| Number Of Addressable I/O Module | 32-32 modules |
| Package Weight(Lbs) | 341.000 g |
| Warranty (In Months) | 18 |

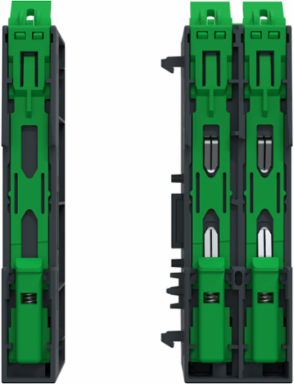

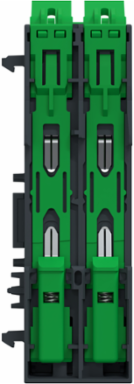

| Kit Composition | NTSNEC1200 NIM, NTSXBA0201H base, NTSXMP0000H termination |
|---|---|
| Marking | CE, UKCA, cULus, RCM |
| Carbon Footprint Of The Distribution Phase [A4] | 0.4069294941567852, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0006133608842022507 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 81 kg CO2 eq., 80.84434551319164 |
| Local Publishable Date | 2026-01-12 |
| Pre Comm Date | 2024-12-19 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2409028EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2439 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Connector Type | 2 RJ45 switched ethernet isolated portsUSB type C 1 |
| Product Or Component Type | network interface module |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Transmission Rate | 10/100 Mbit/s |
| Housing Color | grey |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To manage I/O modules and connect them to the main PLC using network distributed architecture in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 2.8 W (120mA at 24 VDC). To manage I/O modules and connect them to the main PLC using network distributed architecture in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 2.8 W (120mA at 24 VDC). |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 151.3728 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Width Nominal | 30 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8517620090 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-60 °C derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C, -20-60 °C derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C-20-60 °C derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C, -20-60 °C derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 115.79869212241324 |
| Circularity Profile | ENVEOLI2409028EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) without derating2000 m...5000 m with derating |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2024-10-09 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Directives | 2014/35/EU - directive basse tension, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Storage | -40-85 °C-40-85 °C |
| Environmental Disclosure | ENVPEP2409028EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2409028EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | network interface module |
|---|
| Range Of Product | Modicon Edge I/O NTS |
|---|
ETIM
| ETIM 8 | EC001603 |
|---|
| ETIM 9 | EC001603 |
|---|
