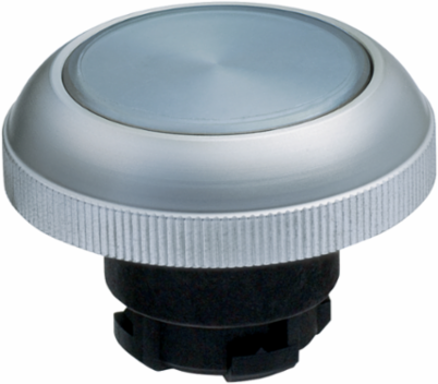

Schmersal 101197347 EX Command Push Button Device for Ex Zones, Stainless Steel, 22.3 mm Diameter
- MPN: 101197347
- PPN: SCM-101197347
CAD
$167.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
EX Command Push Button Device for Ex Zones, Stainless Steel, 22.3 mm Diameter
Features
- Ex-Zone 1 and 21
- Push button
Documentation & Downloads
Specifications
Explosion protection
- Explosion protection: regulations
- EN IEC 60079-0 | EN IEC 60079-11 | EN IEC 60079-31 | EN IEC 60079-14
- Explosion protection category
- 2D | 2G
Explosion protection zones22 | 2 | 1 | 21
Explosion protection designationII 2G Ex ib IIC Gb | II 2D Ex ib IIIC Db

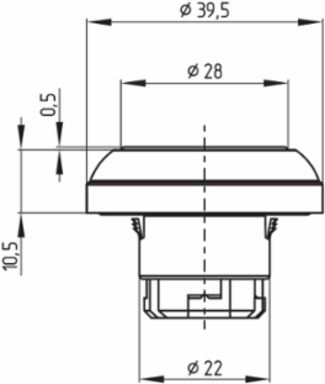

Mechanical data - Dimensions
- Mounting diameter
- 22.3 mm
Thickness of the front panel, maximum6 mm
Safety classification - Safety outputs
- B
- 100,000 Operations
General data
- Standards
- EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-5
- Material of the identification label
- Stainless steel (V4A)
- Colour of the operating element
- Blue
DesignRound
Material of the front ringAluminium
Gross weight60 g
Safety classification
- Mission time
- 20 Year(s)
Mechanical data
- Actuating stroke
- 4 mm
Approvals - Standards
- Certificates
- TÜV | IEC Ex
