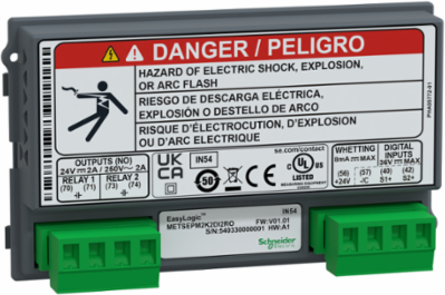

Schneider Electric METSEPM2K2DI2RO EasyLogic PM2X30 - I/O Module - Digital - 2 inputs + 2 relay outputs
- MPN: METSEPM2K2DI2RO
- PPN: SCH-METSEPM2K2DI2RO
CAD
$96.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Optional Input Output module compatible with EasyLogic PM2130, PM2230 devices that provides additional digital inputs and configurable relay outputs. This module provides 2 digital status inputs that support 30VDC. Plus 2 configurable Relay outputs to activate based on various parameters values. The potential free Relay contact support 250 VAC L-N, 2 Amps load or 24 VDC 2 Amps load. The option modules are attached to the back of the meter providing connection for control power and interfacing bus. The EasyLogic PM2130 and PM2230 devices allow a maximum of 1 input/output option modules per meter.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India, United States
Depth14.6 mm
Important Information Attributes
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, PLSED310091EN_Web
- Local Publishable Date
- 2026-05-28
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1510005
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2219
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Device Application
- optional expansion module
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PowerLogic
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1510005EN
- Width Nominal
- 90.5 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionDPIBS
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product Or Component TypeI/O module
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal53 mm
[Ui] Rated Insulation Voltage2500 V
Package Weight(Lbs)0.12 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-60 °C, -10-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1510005
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1510005EN
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1510005EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- I/O module
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Output Attributes
- Number Of Outputs
- 2 relay
Output Voltage250 V AC24 V DC
Input Attributes
- Input Voltage
- 30 V DC
Number Of Inputs2 digital
