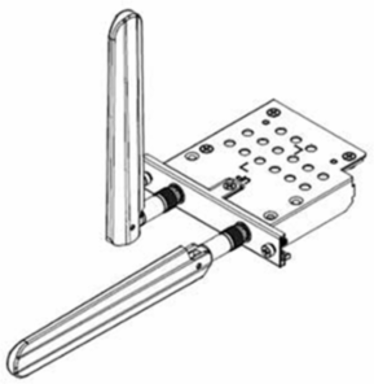

Schneider Electric HMIYP6MPWF Harmony P6 Wireless Module, WiFi/Bluetooth, 0.30Kg
- MPN: HMIYP6MPWF
- PPN: SCH-HMIYP6MPWF
CAD
$291.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This is an inteface module used with Box PCs of Schneider Electric's Harmony P6 range. HMIYP6MPWF is a dedicated WiFi/Bluetooth interface with antennas. It weighs 0.30Kg. They are compatible with all Harmony P6 Advanced and Standard Box PCs. Harmony P6 PC's smart design and engineering shortens implementation time for automation engineers and is more economical throughout the life cycle with optimized design and ease of maintenance. Harmony P6 industiral PCs caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Harmony P6 |
|---|---|
| Product Or Component Type | wireless module |
| Accessory / Separate Part Category | connection accessory |
|---|
Complementary
| Communication Network Type | Wi-Fi || Bluetooth 4.1 |
|---|---|
| Encryption Protocol | WEP 64 || TKIP || AES 128 || AES 256 || WPA2 |
| Range Compatibility | Harmony P6 |
| Accessory / Separate Part Destination | Harmony P6 |
|---|---|
| Integrated Connection Type | Slot-IN 1 || antenna 2 SMA male || M.2 1 |
Environment
| Ambient Air Temperature For Operation | 0-55 °C |
|---|---|
| Relative Humidity | 5-95 % non-condensing |
| Ambient Air Temperature For Storage | -30-70 °C |
|---|
Contractual warranty
| Warranty | 24 months |
|---|
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
