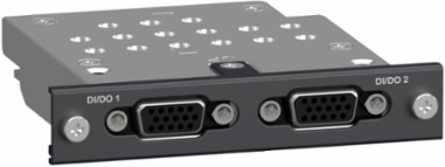

Schneider Electric HMIYP6MPX16Y8 Expansion option, Harmony P6, IPC, 16 x Digital input, 8 x Digital output
- MPN: HMIYP6MPX16Y8
- PPN: SCH-HMIYP6MPX16Y8
- UNSPSC: 43211506
CAD
$518.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This is a dedicated interface module used with Box PCs of Schneider Electric's Harmony P6 range. HMIYP6MPX16Y8 is a 16x digital input and 8x digital output interface expansion module. It weighs 0.30Kg. They are compatible with all Harmony P6 Box PCs. The Harmony P6 online Configurator with enlarged line-up offers many possibilities and when linked with EcoStruxure Plant Builder eases the design of complete automation architectures and solutions.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, United States |
|---|
Complementary Attributes
| Integrated Connection Type | Mini PCIe 1 screw terminal |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Or Component Type | digital input/output cards |
| Returnability | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Accessory / Separate Part Destination | Harmony P6 |
| Customs Code | 8471601050 |
| Halogen Free Status | Product contains halogen above thresholds |
| Warranty In Months | 24 |
| Local Publishable Date | 2026-01-12 |
|---|---|
| Serviceability | No |
| Weee Applicability | Component |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony P6 |
| Sustainable Packaging | No |
| Accessory / Separate Part Category | connection accessory |
| Nbr. Of Units In Pkg. | 1 |
| F Gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Silicone Free | No |
Environment Attributes Main
| Ambient Air Temperature For Storage | -30-70 °C, -30-70 °C |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| Silicon Free | No |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| F Gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-55 °C |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % non-condensing |
General Attributes
| Product Or Component Type | digital input/output cards |
|---|
| Range Of Product | Harmony P6 |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|---|
| ETIM 10 | EC002584 |
| ETIM 9 | EC002584 |
|---|
Output Attributes
| Output Voltage | 5...30 V DC |
|---|
Contractual Warranty Attributes
| Warranty Period | 24 months |
|---|
| Warranty | 24 months |
|---|
Input Attributes
| Input Voltage | 0...3 V DC, 10...30 V DC |
|---|
| Input Current | 2.97 mA 10 V DC6.35 mA 20 V DC |
|---|
