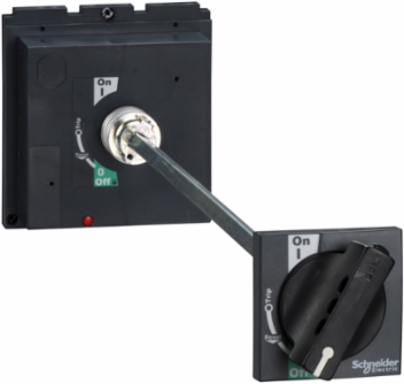

Schneider Electric LV432598 extended rotary handle, ComPact NSX 400/630, black handle, shaft length 209 to 600 mm, IP55
Schneider Electric LV432598 extended rotary handle, ComPact NSX 400/630, black handle, shaft length 209 to 600 mm, IP55
- MPN: LV432598
- PPN: SCH-LV432598
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1140.08/ EA
Description
It is an extended rotary handle for Compact NSX 400/630, PowerPacT Multistandard L frames and EasyPact CVS 400/630 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
Specifications
Environment
- Ip Degree Of Protection
- IP55
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2204005
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI2204005EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Important Information
- Important Message
- This product has been switched to new ComPacT range and is no longer commercialized.
Complementary
- Range Compatibility
- ComPact ComPact NSX400 || ComPact ComPact NSX630 || EasyPact EasyPact CVS400 || EasyPact EasyPact CVS630 || PowerPact PowerPact Multistandard
- Rotary Handle Padlocking
- 1 to 3 padlocks || padlock in OFF position
Rotary Handle Mounting Locationfront
Specifications
- Rotary Handle Mounting Style
- extended
- Handle Front Plate Colour
- black
- Product Or Component Type
- rotary handle
Range Of ProductComPact NSX400...630
Handle Colourblack
Accessory / Separate Part Typecontrol accessories
