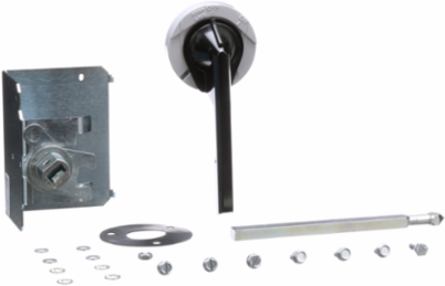

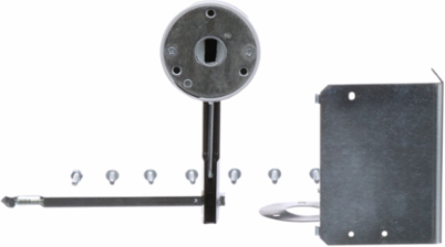

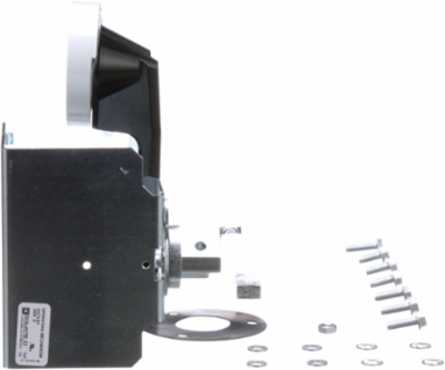

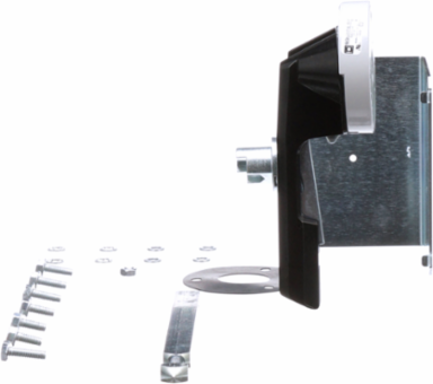

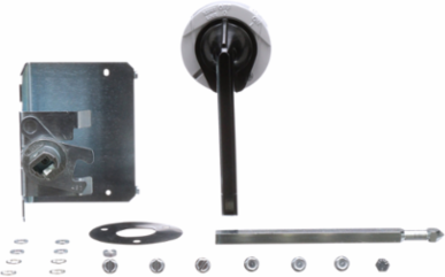

Square D 9421LB1 PowerPacT B Rotary Handle Kit, 6 Inch, 125A, Standard Shaft
Square D 9421LB1 PowerPacT B Rotary Handle Kit, 6 Inch, 125A, Standard Shaft
- MPN: 9421LB1
- UPC: 785901093435
- PPN: SCH-9421LB1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$471.17/ EA
Description
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPact B circuit breakers. Mechanism is used with 2 or 3 pole breakers with a frame size of 125A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a standard shaft. The mounting depth of this kit is 5.5 to 10.75 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Mechanism is UL Component Recognized and CSA certified.
Specifications
Complementary
- Marking
- OFF - Trip - ON
- Length
- 6 in
Shaft Typestandard
Mounting Locationon door
Specifications
- Range Of Product
- 9421L
Product Or Component TypeOperating Mechanism
Offer Sustainability
- Eu Rohs Directive
- Under investigation
