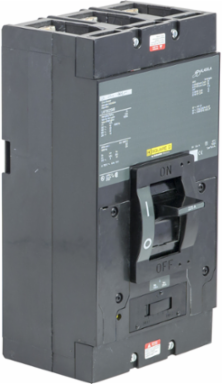

Square D LAP36225MB Circuit Breaker 225A 3 Pole 600VAC Unit Mount Thermal Magnetic
Square D LAP36225MB Circuit Breaker 225A 3 Pole 600VAC Unit Mount Thermal Magnetic
- MPN: LAP36225MB
- UPC: 785901339441
- PPN: SCH-LAP36225MB
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This sophisticated circuit breaker from Schneider Electric offers robust protection in power distribution applications. Designed for a 225A capacity and featuring a three-pole configuration, it operates efficiently at a voltage of up to 600VAC, making it a reliable choice for various industrial environments. The unit mount thermal magnetic design not only ensures optimal performance under different load conditions but also enhances safety by providing effective overload and short-circuit protection. Ideal for panel builders and electrical contractors, this molded case circuit breaker stands out as an essential component for maintaining circuit integrity and preventing equipment damage.
Specifications
- Amperage
- 225 A
- Breaking Capacity
- 22 kA
- Magnetic Tripping Current
- 2250 A
- Circuit Breaker Application
- HACR rated
- Mounting Mode
- unit mount
- Operator
- Short lever
- Width
- 6 in
- Terminal Identifier
- AL400LA
- Breaking Capacity Code
- A
- PVC Free
- Yes
- Compliance
- EU RoHS Compliant with Exemptions, China RoHS
- Country of Origin
- Mexico
Voltage600 VAC, 250 VDC
Magnetic Hold Current1125 A
Trip Unit TechnologyMagnetic
Number of Poles3
Wiring Configuration3-wire
Height11 in
Depth5.84 in
Electrical Connectionlugs, load terminal, line
MaterialHalogen free plastic parts
Mercury FreeYes
Product CertificationsCSA, IEC, UL listed
