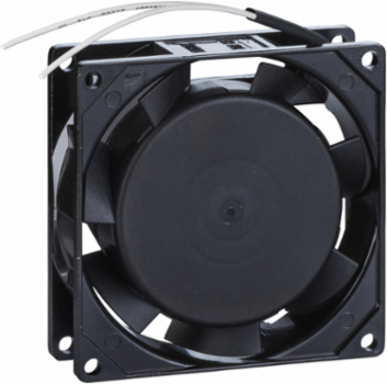

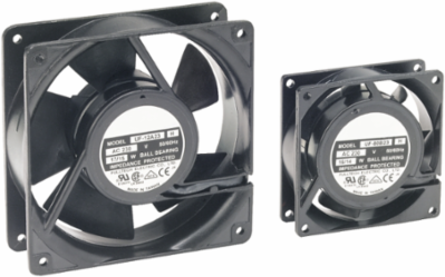

Schneider Electric NSYCVF35M230 ClimaSys CV Axial Motor Ventilator 35 m3/h 230V, 32 dB Noise Level
- MPN: NSYCVF35M230
- PPN: SCH-NSYCVF35M230
CAD
$87.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for optimal air circulation, this axial motor fan from Schneider Electric is a reliable choice for various ventilation needs. With a free flow rate of 35 m3/h at 50 Hz and a compact design featuring external dimensions of 80 mm in height and width, it seamlessly integrates into tight spaces. Operating at a low noise level of just 32 dB, this motor ventilator ensures a quiet environment while delivering efficient performance with a power range of 16 W at 50 Hz and 14 W at 60 Hz. Manufactured in Spain, it comes with an 18-month warranty, making it a dependable option for your air management solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.4914897560913952, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.027561189729989277, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 963 kg CO2 eq., 963.0910591495528
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1107017EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Composition
- 1 axial motor
- Power Range
- 16 W 50 Hz14 W 60 Hz
- Product Name
- ClimaSys CV
- Range
- ClimaSys
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 966 kg CO2 eq.
- Pep Code
- ENVPEP110717EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 17
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 64
- Width Nominal
- external: 80 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.36989191821229067
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.6105523922818785
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Noise Level32-32 dB
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typefan motor
ReturnabilityNo
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit Description"Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh2382.72
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominalexternal: 80 mm
Cut-out DimensionsØ 78 mm
Package Weight(Lbs)248.000 g
Warranty (In Months)18
Customs Code8414596590
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 965.5905544058684
- Circularity Profile
- ENVEOLI1107017EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP110717EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Air Flowfree flow rate: 35 m3/h at 50 Hz
Environmental DisclosureENVPEP110717EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0008-ed3-EN-2023 10 19
General Attributes
- Product Or Component Type
- fan motor
ETIM
- ETIM 8
- EC000320
ETIM 9EC000320
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 230 V 50/60 Hz
