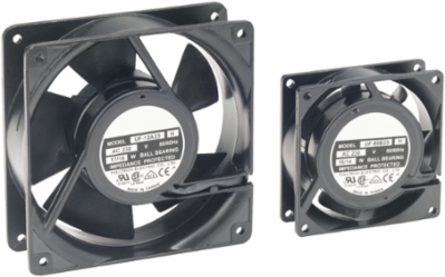

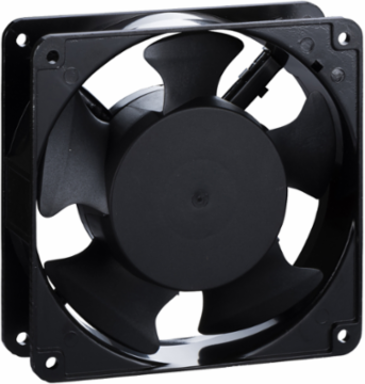

Schneider Electric NSYCVF156M230 ClimaSys CV Axial Motor Ventilator 156 m3/h 230V, 120 mm x 120 mm x 38 mm
- MPN: NSYCVF156M230
- PPN: SCH-NSYCVF156M230
CAD
$74.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 15W 50 Hz, 17W 60 Hz. Free flow rate of 156 m3/h. 120 x 120 x 38 mm. Cut-out dimensions of diameter 114 mm.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Spain, France
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 1.0107249016395627, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.05667825307376827, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 861 kg CO2 eq., 860.7626341149129
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1107017EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Composition
- 1 axial motor
- Noise Level
- 42-42 dB
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- fan motor
- Returnability
- No
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- "Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 2129.556
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- external: 120 mm
- Cut-out Dimensions
- Ø 114 mm
- Package Weight(Lbs)
- 510.000 g
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.8 kg CO2 eq., 0.7606648318075333
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.312023064773218
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Power Range15 W 60 Hz17 W 50 Hz
Product NameClimaSys CV
RangeClimaSys
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint866 kg CO2 eq.
Pep CodeENVPEP110717EN
Pep Verification Date2025-08-05
Psr VersionPSR-0008-ed3-EN-2023 10 19
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y17
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %64
Width Nominalexternal: 120 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Customs Code8414596590
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Air Flow
- free flow rate: 156 m3/h at 50 Hz
- Environmental Disclosure
- ENVPEP110717EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint865.9027251662069
Circularity ProfileENVEOLI1107017EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP110717EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- fan motor
ETIM
- ETIM 8
- EC000320
ETIM 9EC000320
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 230 V 50/60 Hz
