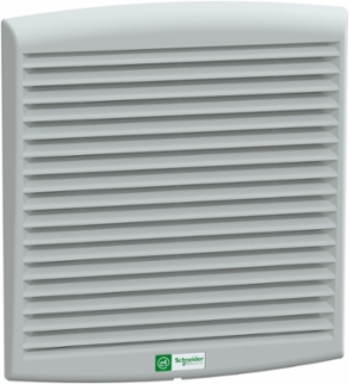

Schneider Electric NSYCVF165M230PF ClimaSys Axial Motor Ventilator, 165 m3/h, IP54, 230V
- MPN: NSYCVF165M230PF
- PPN: SCH-NSYCVF165M230PF
CAD
$360.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 14.3 W 50 Hz, 16.3 W 60 Hz. Free flow rate with standard filter of 156 m3/h at 50 Hz and 193 m3/h at 60 Hz. 268 x 248 x 104 mm. Cut-out dimensions of 223 x 223 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by faston connector. 2 protective grille on the front and rear surfaces. Protection IP54.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes
- Color
- outlet grille Gray RAL 7035)
Complementary Attributes
- Line Rated Current
- 0.12-0.12 A 50 Hz0.94-0.94 A 60 Hz
Maximum Pressure50 Pa flow rate 0 m³/h
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Condition Of Use
- overfrequent filter replacement should be avoided, filter must be cleaned and replaced regularly, flow rates depends on the work point, see ProClima software, outside temperature must be 5 °C lower than inside temperature, surrounding environment must be relatively clean
- Carbon Footprint Of The Distribution Phase [A4]
- 2.8498478599170416, 3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.15981044690211524, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 861 kg CO2 eq., 860.7626341149129
- Local Publishable Date
- 2024-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1107017EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bearing Type
- ball
- Noise Level
- 50-51 dB
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- fan
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Ventilation Filter
- standard
- Pep Code
- ENVPEP110717EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 17
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 64
- Width Nominal
- external: 248 mm
- [Us] Rated Supply Voltage
- 175...253 V
- Cut-out Dimensions
- 223 x 223 mm
- Package Weight(Lbs)
- 1.438 kg
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 axial motor, 2 protective grille on the front and rear surfaces1 filter front of axial motor1 outlet grille front, 1 cut-out template, 1 power cord
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.1447765257632017
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 9.338606210086054
Local Data StatusPublishable
Return IndicatorN
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Materialoutlet grille injected thermoplastic (ASA PC)
Power Range16.3 W 50 Hz14.3 W 60 Hz
Product NameClimaSys CV
RangeClimaSys
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint875 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit Description"Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh2129.556
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominalexternal: 268 mm
Certificate AgencyCSA
Connections - TerminalsFaston connector
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Customs Code8414596590
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Air Flow
- free flow rate with standard filter: 165 m3/h at 50 Hzfree flow rate with standard filter: 193 m3/h at 60 Hz
- Environmental Disclosure
- ENVPEP110717EN
- Ip Degree Of Protection
- IP54
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP110717EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint875.2556751575813
Circularity ProfileENVEOLI1107017EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0008-ed3-EN-2023 10 19
General Attributes
- Product Or Component Type
- fan
ETIM
- ETIM 8
- EC000320
ETIM 9EC000320
Surge Protection And Filtering Attributes
- Type Of Ventilation Filter
- standard
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 230 V 50/60 Hz
