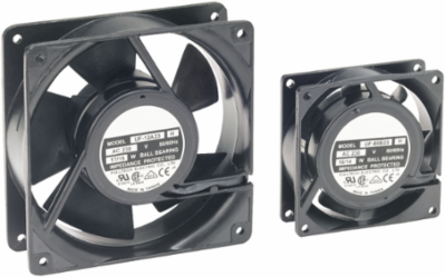

Schneider Electric NSYCVF35M115 ClimaSys CV Motor Ventilator 35 m3/h 115V, 16W, 32 dB, 80 mm
- MPN: NSYCVF35M115
- PPN: SCH-NSYCVF35M115
CAD
$104.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for efficient air circulation, this motor ventilator from Schneider Electric boasts an impressive airflow rate of 35 m3/h at 50 Hz, making it an ideal choice for various ventilation applications. Operating at a power range of 16 W at 50 Hz and 14 W at 60 Hz, this fan motor is engineered to deliver reliable performance while maintaining a low noise level of just 32 dB. With compact dimensions of 80 mm in width and height, and a depth of only 25 mm, it is easy to integrate into existing setups. This unit operates on a 115 V input voltage, ensuring compatibility with standard electrical systems, and comes with an 18-month warranty for added peace of mind.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Spain
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Power Range
- 16 W 50 Hz, 14 W 60 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.22372495053162744
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 0.9741244308156524
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Noise Level
- 32-32 dB
- Product Name
- ClimaSys CV
- Range
- ClimaSys
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 965 kg CO2 eq.
- Pep Code
- ENVPEP110717EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 17
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential, In %
- 64
- Width Nominal
- external: 80 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.29727202989398904, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.016670074433461256, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]963 kg CO2 eq., 963.0910591495528
Local Publishable Date2025-07-09
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1107017EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1916
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Composition1 axial motor
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typefan motor
ReturnabilityNo
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit Description"Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh2382.72
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominalexternal: 80 mm
Cut-out DimensionsØ 78 mm
Package Weight(Lbs)150.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 964.6028506352276
- Circularity Profile
- ENVEOLI1107017EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP110717EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Air Flowfree flow rate: 35 m3/h at 50 Hz
Environmental DisclosureENVPEP110717EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0008-ed3-EN-2023 10 19
General Attributes
- Product Or Component Type
- fan motor
ETIM
- ETIM 8
- EC000320
ETIM 9EC000320
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 115 V 50/60 Hz
