Hubbell Premise Wiring OCSNM34 Fiber Optic High Density Cassette 72 Fibers 36 Ports LGX OM3/OM4

MPN: OCSNM34
UPC: 662620343853
PPN: HBL-OCSNM34
UNSPSC: 43223310

$4039.83

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

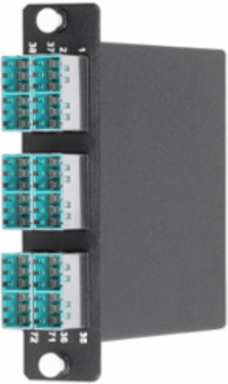

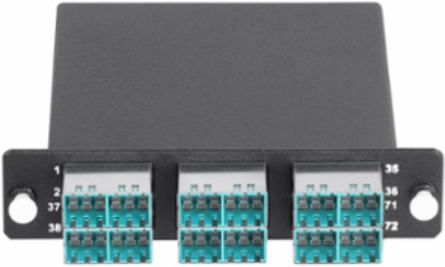

Fiber Optic High Density Cassette, LGX Standard Slot Size, 72 SN to 6 MTP, OM3/OM4, Aqua

Features

Ultilizes the latest in Compact Duplex Connector Technology
Fits in a standard LGX Slot
Provides High fiber density in your current enclosure
Provides Extreme high density in any size Enclosure
Push-Pull on Boot for Quick Connect/Disconnect

Specifications

Key Specifications

Country of Origin	United States
Height	1.1 in
Application	Interconnect
Environmental Conditions	Indoor
Standard	Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
Connectivity	Cassette
Enclosure Type	LGX
Number Of Ports	36
Freight Class Code	06168002
Image Actual Or Representative	A
Adapter Type	SN Duplex
Base Unit of Measure	EA
Carton - Gross Weight per Pack	2.500 lb.
Carton - Pack Description	Carton
Carton - Total Units	50
Pallet Weight	0.000 lb.

Width	8.400 in
Industry Standard(s)	Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
Enclosure	LGX
Fiber Type	OM3/OM4
General Literature Asset 1 Display Text	LGX Max CS and SN Cassettes
Display Size	4.0" x 1.1"
Number Of Fibers	72
Class Code	A68
Harmonization Code	8536700000
Sub Class Code	A68A690
Polarity	Type A
BOX SIZE	6.875x9.900x11.250 (in)
Carton - Number of Sub Packs	50
Carton - SCC-14 Next Lower Level Sub Pack	00662620343853
Case Weight	2.500 lb.
NAICS Code	3342104145
