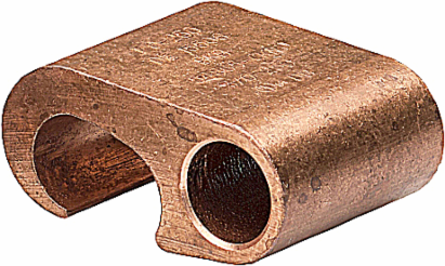

Blackburn 54865-CKN Figure 6 Copper Compression Ground Tap Connector, 3/0 Stranded - 250 kcmil, Copper
- MPN: 54865-CKN
- UPC: 075114215497
- PPN: T-B-54865-CKN
CAD
$107.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Figure 6 Copper Compression Ground Tap Connector - Application Main 5/8 inch Rod, Application Tap 3/0 Stranded - 250 kcmil, Width 1-1/2 Inches, Height 2-3/16 inches, Ground Rod Should Be Pre-Crimped with Die 15506SS (45H)
Features
- E-Z-Ground® connectors are designed for direct burial and offer a safe, efficient alternative to exothermic welding products.
- Application Tools: 13100A, TBM14M, TBM14CR-LI, TBM15CR-LI, TBM15 or TBM15I
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121449 Wire or cable compression splice |
|---|---|
| Brand Name | Blackburn |
| Special Features | E-Z-Ground® connectors are designed for direct burial and offer a safe, efficient alternative to exothermic welding products. |
| Conductor Range | 3/0 Str - 250 kcmil |
| IGCC | 4669 Wire or cable compression splice |
|---|---|
| Type | Figure 6 Copper Compression Ground Tap Connector |
| Standard | UL E3060, IEEE837-2014 |
| Material | Copper |
Packaging
| Outer Quantity | 25 |
|---|---|
| Weight Uom | 0.63 lbs. Each |
| Outer Dimensions (inches) | 7.5x6x6.5 |
|---|
