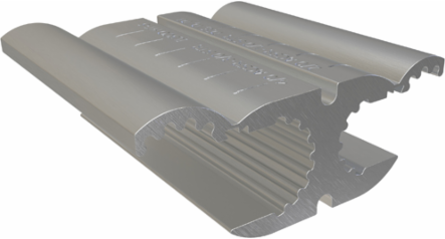

ILSCO HT-5 Aluminum Compression Tap Connector, Dual Rated, Main Conductor Range 4/0-3/0, Tap Range 2/0-1/0, CSA

MPN: HT-5
UPC: 783669461305
PPN: ILC-HT-5

$6.14

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Aluminum Compression Tap Connector, Dual Rated, Main Conductor Range 4/0-3/0, Tap Range 2/0-1/0, CSA

Documentation & Downloads

Specifications

Key Specifications

Height	2.375 in \| 60.325 mm
Weight	0.176 lbs

Length	0.987 in \| 25.0698 mm
Width	2.25 in \| 57.15 mm

Voltage

Voltage Rating	35 kV

Dimensions

Height BX (IN)	5.5
Length (mm)	25.0698
Width (mm)	57.15

Height (mm)	60.325
Width BX (IN)	3.5625

Testing Standards

CSA File Number	AP-5465

Prop65 Compliance	This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

Additional Class Attributes

Barrel Marking	Hard

ILSCOs Die Index Number	D3

Material and Finish

Conductor Material	Copper, Aluminum

Material	Aluminum

Conductor Ranges

Conductor Range ACSR (Secondary, tap, load)	4/0 ACSR - 3/0 ACSR
Conductor Range AL Stranded (Primary, run, main, line)	4/0 Str - 3/0 Str
Conductor Range CU Stranded (Primary, run, main, line)	4/0 Str - 3/0 Str

Conductor Range ACSR (primary, run, main, line)	2/0 ACSR - 1/0 ACSR
Conductor Range AL Stranded (Secondary, tap, load)	2/0 Str - 1/0 Str
Conductor Range CU Stranded (Secondary, tap, load)	2/0 Str - 1/0 Str
