Aluminum Compression Tap Connector, Dual Rated, Main Conductor Range 3/0-1/0, Tap Range 3/0-1/0 Str, CSA

Documentation & Downloads

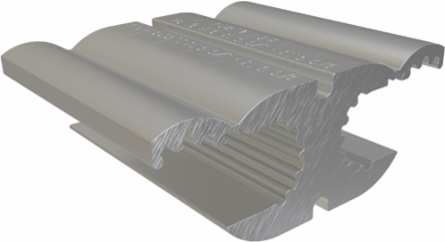

ILSCO HT-4 Aluminum Compression Tap Connector, Dual Rated, Main Conductor Range 3/0-1/0, Tap Range 3/0-1/0 Str, CSA

MPN: HT-4
UPC: 783669461268
PPN: ILC-HT-4

CAD

$6.14

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Aluminum Compression Tap Connector, Dual Rated, Main Conductor Range 3/0-1/0, Tap Range 3/0-1/0 Str, CSA

Documentation & Downloads

Specifications

Key Specifications

Height: 2.269 in | 57.6326 mm

Weight: 0.156 lbs

Length1.875 in | 47.625 mm

Width0.885 in | 22.479 mm

Voltage

Voltage Rating: 35 kV

Dimensions

Height BX (IN): 8.25

Length (mm): 47.625

Width (mm): 22.479

Height (mm)57.6326

Width BX (IN)4.6875

Testing Standards

CSA File Number: AP-5465

Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

Additional Class Attributes

Barrel Marking: Hard

ILSCOs Die Index NumberD3

Material and Finish

Conductor Material: Copper, Aluminum

MaterialAluminum

Conductor Ranges

Conductor Range ACSR (Secondary, tap, load): 2/0 ACSR - 1 ACSR

Conductor Range AL Stranded (Primary, run, main, line): 3/0 Str - 1/0 Str

Conductor Range CU Stranded (Primary, run, main, line): 3/0 Str - 1/0 Str

Conductor Range ACSR (primary, run, main, line)2/0 ACSR - 1 ACSR

Conductor Range AL Stranded (Secondary, tap, load)3/0 Str - 1/0 Str

Conductor Range CU Stranded (Secondary, tap, load)3/0 Str - 1/0 Str

Additional Technical Specifications

Conductor Type: Stranded

General

Bag Quantity: 1

Direct Burial: No

NEMA Code: S-588-1

Carton Quantity DescriptionSTD PACK QTY 25

Dual RatedYes

UPC Code78366946126

Color

Color: Silver

Environment and Temperature

Temperature Rating: 90°C
