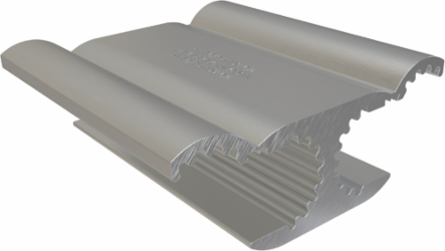

ILSCO HT-7 Aluminum Compression Tap Connector, Dual Rated, Main Conductor Range 4/0-3/0, Tap Range 4/0-3/0, CSA
- MPN: HT-7
- UPC: 783669461329
- PPN: ILC-HT-7
CAD
$6.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Compression Tap Connector, Dual Rated, Main Conductor Range 4/0-3/0, Tap Range 4/0-3/0, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.493 in | 63.3222 mm
- Weight
- 0.431 lbs
Length0.987 in | 25.0698 mm
Width2.5 in | 63.5 mm
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Height (mm)
- 63.3222
- Width (mm)
- 63.5
Length (mm)25.0698
Testing Standards
- CSA File Number
- AP-5465
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Additional Class Attributes
- Barrel Marking
- Hard
ILSCOs Die Index NumberD3
Material and Finish
- Conductor Material
- Copper, Aluminum
MaterialAluminum
Conductor Ranges
- Conductor Range ACSR (Secondary, tap, load)
- 4/0 ACSR - 3/0 ACSR
- Conductor Range AL Stranded (Primary, run, main, line)
- 4/0 Str - 3/0 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 4/0 Str - 3/0 Str
Conductor Range ACSR (primary, run, main, line)4/0 ACSR - 3/0 ACSR
Conductor Range AL Stranded (Secondary, tap, load)4/0 Str - 3/0 Str
Conductor Range CU Stranded (Secondary, tap, load)4/0 Str - 3/0 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-1
Carton Quantity DescriptionSTD PACK QTY 25
Dual RatedYes
UPC Code78366946132
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
