ILSCO

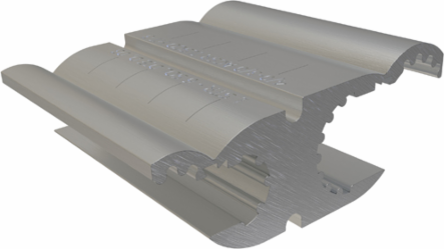

ILSCO HT-3 Aluminum Compression Tap Connector, Dual Rated, Main Conductor Size 4/0, Tap Range 1/0 Sol - 6 Sol and 1 Str - 6 Str, CSA

Aluminum Compression Tap Connector, Dual Rated, Main Conductor Size 4/0, Tap Range 1/0 Sol - 6 Sol and 1 Str - 6 Str, CSA
  • MPN: HT-3
  • UPC: 783669461282
  • PPN: ILC-HT-3

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$5.69/ EA

Description

Aluminum Compression Tap Connector, Dual Rated, Main Conductor Size 4/0, Tap Range 1/0 Sol - 6 Sol and 1 Str - 6 Str, CSA

Specifications

Voltage

Voltage Rating
35 kV

Dimensions

Height BX (IN)
8.25
Length (mm)
22.9362
Width (mm)
47.625
Height (mm)57.2516
Width BX (IN)4.6875

Testing Standards

CSA File Number
AP-5465
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

Additional Class Attributes

Barrel Marking
Hard
ILSCOs Die Index NumberD3

Material and Finish

Conductor Material
Copper, Aluminum
MaterialAluminum

Conductor Ranges

Conductor Range ACSR (Secondary, tap, load)
4/0 ACSR - 3/0 ACSR
Conductor Range AL Solid (Secondary, tap, load)
1/0 Sol - 6 Sol
Conductor Range AL Stranded (Secondary, tap, load)
1 Str - 6 Str
Conductor Range CU Stranded (Primary, run, main, line)
4/0 Str
Conductor Range ACSR (primary, run, main, line)2 ACSR - 6 ACSR
Conductor Range AL Stranded (Primary, run, main, line)4/0 Str
Conductor Range CU Solid (Secondary, tap, load)1/0 Sol - 6 Sol
Conductor Range CU Stranded (Secondary, tap, load)1 Str - 6 Str

Additional Technical Specifications

Conductor Type
Solid, Stranded

General

Bag Quantity
1
Direct Burial
No
NEMA Code
S-588-1
Carton Quantity DescriptionSTD PACK QTY 25
Dual RatedYes
UPC Code78366946128

Specifications

Height
2.254 in | 57.2516 mm
Weight
0.144 lbs
Length0.903 in | 22.9362 mm
Width1.875 in | 47.625 mm

Color

Color
Silver

Environment and Temperature

Temperature Rating
90°C
