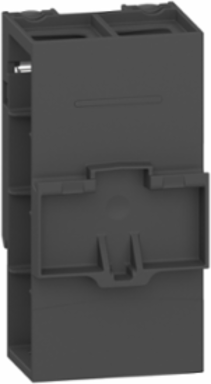

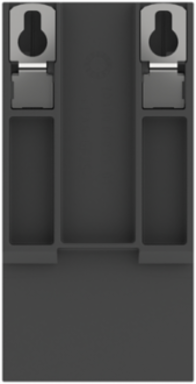

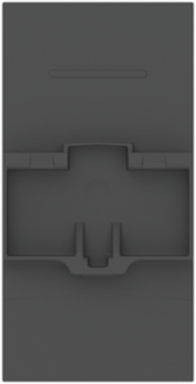

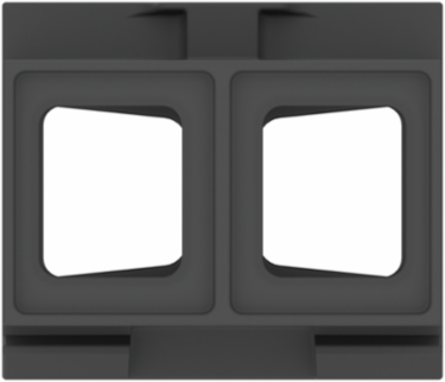

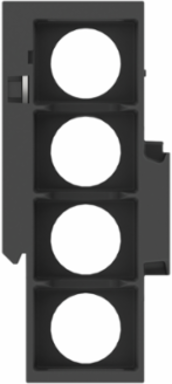

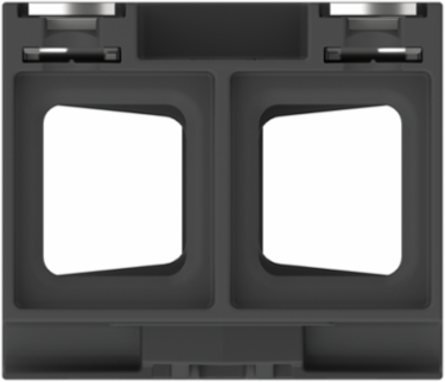

Schneider Electric VW3G921304 Fixing kit, Altivar soft starter ATS130, direct mounting with GV3
- MPN: VW3G921304
- PPN: SCH-VW3G921304
CAD
$36.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Fixing kit is part of the Altivar Soft Starter ATS130 range. It is an option for ATS130 soft starters. The kit allows the assembly of a compact Soft Motor starter. It is used to mount a TeSys Deca frame 3 motor circuit breaker on the top of an ATS130 from 38A to 65A. The fixing kit allows the ATS130 soft motor starter to be mounted on DIN rails or a backplate. It has the same width (55mm) as the TeSys Deca frame 3 motor circuit breakers. It weighs 0.065kg. Compatible with ATS130 soft starters from 38A to 65A and TeSys Deca frame 3 motor circuit breakers. It is designed to be mounted on a DIN rail or a backplate. The Altivar Soft Starter ATS130 range is preventive maintenance-free and increases operational efficiency during design, manufacturing, and commissioning. This range is designed to take environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, France
Important Information Attributes
- Kit Composition
- mounting kit, instruction sheet
- Local Publishable Date
- 2026-03-27
- Stocking Flag
- N
- Device Type
- Soft starter - Soft starter option & accessory
- Traceability
- No
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2315
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Accessory Dimension
- 55 x 108 x 48 mm
- Range Of Product
- Altivar Soft Starter ATS130
- Sustainable Packaging
- No
- Accessory / Separate Part Destination
- soft starter for asynchronous motor
- Accessory / Separate Part Designation
- fixing kit
- Package Weight(Lbs)
- 89.000 g
- Warranty (In Months)
- 18
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ApplicabilityComponent
Weee Exclusion RationaleComponent not in scope – non independent function
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Accessory / Separate Part Categorymounting and fixing accessories
Accessory / Separate Part Typefixing kit
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538906000
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
General Attributes
- Range Of Product
- Altivar Soft Starter ATS130
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
