Blackburn

Blackburn FB3D12-1 FLEX BRAID 230.4 KCMIL 12IN 1HOLE

FLEX BRAID 230.4 KCMIL 12IN 1HOLE
FLEX BRAID 230.4 KCMIL 12IN 1HOLE
FLEX BRAID 230.4 KCMIL 12IN 1HOLE
FLEX BRAID 230.4 KCMIL 12IN 1HOLE
  • MPN: FB3D12-1
  • UPC: 783786019502
  • PPN: T-B-FB3D12-1
  • UNSPSC: 39121465

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$267.21/ EA

Description

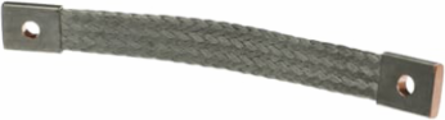

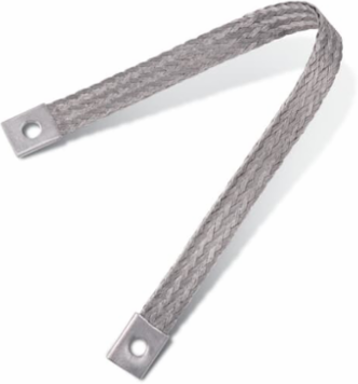

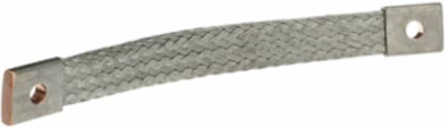

Tin Plated Copper Flexible Braid Connector for grounding, 1-Hole Pads. 12 inches length x 1.25 inch wide x .35 inch thick, 3 braids in ferrule - 1 Across x 3 Layers Thick, 1.5 inches ferrule length with .438 inch Diameter Holes, 230400 circular mils, bolt hole 7/16 inch

Specifications

Additional Information

Application
For continuous current, grounding and bonding applications
Cable Length
12 in
Conductor Shape
Flat
Material of Conductor
Tin-Plated Copper
Product Type
Flexible Braid Connector - 1-Hole
Standards
UL E3060, CSA LR29625
Brand / LabelBoreal
Conductor CategoryFlexible
Effective Date20100713
Product NameCOPPER FLEX.BRAID GROUND CONNECTOR
Special FunctionsTin-Plated Copper Braids and Ferrules for High Conductivity and Corrosion Resistance. Enables Linear Expansion, Equipment Vibration and Offset Connections.

Ordering

Country of Origin
United States (US)
Selling Unit of Measureeach

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4695 >> Flexible braid
