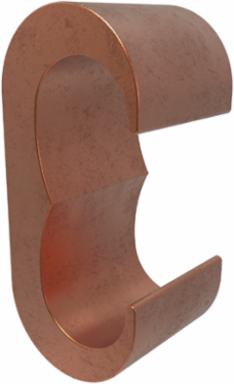

ILSCO ELT-3 Permaground Copper Grounding E Crimp, Main Conductor Range 250-3/0, Main Rebar Size #4, Tap Range 250-3/0, Tap Rebar Size #4, UL, CSA
- MPN: ELT-3
- UPC: 783669257342
- PPN: ILC-ELT-3
CAD
$40.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Permaground Copper Grounding E Crimp, Main Conductor Range 250-3/0, Main Rebar Size #4, Tap Range 250-3/0, Tap Rebar Size #4, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.063 in | 52.4002 mm
- Weight
- 0.246 lbs
Length0.936 in | 23.7744 mm
Width0.9 in | 22.86 mm
Dimensions
- Height BX (IN)
- 2
- Length (mm)
- 23.7744
- Width BX (IN)
- 5
Height (mm)52.4002
Weight BX (LB)4.6654
Width (mm)22.86
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS SpecificationUL 467 Listed
Additional Class Attributes
- ILSCOs Die Index Number
- 997
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishBare
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 250 kcmil - 3/0 Str
- Ground Rod Size
- 1/2
- Rebar Size(s) Secondary
- #4 (1/2)
Conductor Range CU Stranded (Secondary, tap, load)250 kcmil - 3/0 Str
Rebar Size(s) Main#4 (1/2)
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-573-3
Carton Quantity DescriptionSTD PACK QTY 6
Dual RatedNo
UPC Code78366925734
Color
- Color
- Copper
