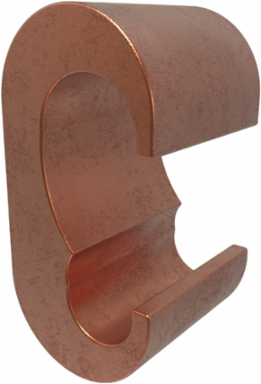

ILSCO ELT-4 Permaground Copper Grounding E Crimp, Main Conductor Range 2/0-1, Main Rebar Size #3, Tap Range 2-6, UL, CSA
- MPN: ELT-4
- UPC: 783669257366
- PPN: ILC-ELT-4
CAD
$35.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Copper Grounding E Crimp, Main Conductor Range 2/0-1, Main Rebar Size #3, Tap Range 2-6, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.75 in |
|---|---|
| Weight | 0.221 lbs |
| Length | 1.411 in |
|---|---|
| Width | 0.712 in |
Dimensions
| Height BX (IN) | 2 |
|---|---|
| Width BX (IN) | 5 |
| Weight BX (LB) | 6.47 |
|---|
Testing Standards
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
|---|
| UL / CULUS Specification | UL 467 Listed |
|---|
Additional Class Attributes
| ILSCOs Die Index Number | O |
|---|
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Bare |
|---|
Conductor Ranges
| Conductor Range CU Stranded (Primary, run, main, line) | 2/0 Str - 1 Str |
|---|---|
| Rebar Size(s) Main | #3 (3/8) |
| Conductor Range CU Stranded (Secondary, tap, load) | 2 Str - 6 Str |
|---|
Additional Technical Specifications
| Conductor Type | Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | Yes |
| NEMA Code | S-573-3 |
| Carton Quantity Description | STD PACK QTY 25 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366925736 |
Color
| Color | Copper |
|---|
