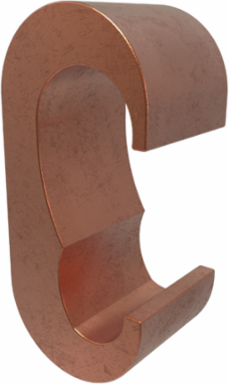

ILSCO ELT-5 Permaground Copper Grounding E Crimp, Main Conductor Range 250-3/0, Main Rebar Size #4, Tap Range 2/0-6 Sol, Tap Rebar Size #3, UL, CSA
- MPN: ELT-5
- UPC: 783669257380
- PPN: ILC-ELT-5
CAD
$40.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Permaground Copper Grounding E Crimp, Main Conductor Range 250-3/0, Main Rebar Size #4, Tap Range 2/0-6 Sol, Tap Rebar Size #3, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.75 in
- Weight
- 0.221 lbs
Length1.968 in
Width0.922 in
Dimensions
- Height BX (IN)
- 2.25
- Width BX (IN)
- 4.375
Weight BX (LB)3.3224
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS SpecificationUL 467 Listed
Additional Class Attributes
- ILSCOs Die Index Number
- 997
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishBare
Conductor Ranges
- Conductor Range CU Solid (Secondary, tap, load)
- 2/0 Sol - 6 Sol
- Conductor Range CU Stranded (Secondary, tap, load)
- 2/0 Str - 6 Str
- Rebar Size(s) Main
- #4 (1/2)
Conductor Range CU Stranded (Primary, run, main, line)250 kcmil - 3/0 Str
Ground Rod Size1/2
Rebar Size(s) Secondary#3 (3/8)
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-573-3
Carton Quantity DescriptionSTD PACK QTY 6
Dual RatedNo
UPC Code78366925738
Color
- Color
- Copper
