ILSCO

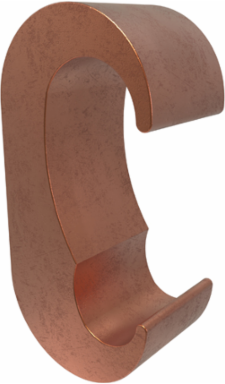

ILSCO ELT-6 Permaground Copper Grounding E Crimp, Main Conductor Range 500-300, Main Rebar Size #6, Tap Range 250-3/0, Tap Rebar Size #3-#4, UL, CSA

  • MPN: ELT-6
  • UPC: 783669257403
  • PPN: ILC-ELT-6

CAD

$50.17

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Permaground Copper Grounding E Crimp, Main Conductor Range 500-300, Main Rebar Size #6, Tap Range 250-3/0, Tap Rebar Size #3-#4, UL, CSA

Documentation & Downloads

Specifications

Key Specifications

Height2.672 in | 67.8688 mm
Weight1.033 lbs
Length1.328 in | 33.7312 mm
Width0.875 in | 22.225 mm

Dimensions

Height BX (IN)2
Length (mm)33.7312
Width BX (IN)5
Height (mm)67.8688
Weight BX (LB)6.268
Width (mm)22.225

Testing Standards

Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS SpecificationUL 467 Listed

Additional Class Attributes

ILSCOs Die Index Number1011

Material and Finish

Conductor MaterialCopper
MaterialCopper
Connector FinishBare

Conductor Ranges

Conductor Range CU Stranded (Primary, run, main, line)500 kcmil - 300 kcmil
Ground Rod Size3/4
Rebar Size(s) Secondary#3 (3/8), #4 (1/2)
Conductor Range CU Stranded (Secondary, tap, load)250 kcmil - 3/0 Str
Rebar Size(s) Main#6 (3/4)

Additional Technical Specifications

Conductor TypeStranded

General

Bag Quantity1
Direct BurialYes
NEMA CodeS-573-3
Carton Quantity DescriptionSTD PACK QTY 6
Dual RatedNo
UPC Code78366925740

Color

ColorCopper
Permaground Copper Grounding E Crimp, Main Conductor Range 500-300, Main Rebar Size #6, Tap Range 250-3/0, Tap Rebar Size #3-#4, UL, CSA
