Permaground Copper Grounding Connector, Main Conductor Range 2/0-2, Tap Range 2/0-2, Ground Rod Size 3/4in, Rebar Sizes #3-#4, UL, CSA

Documentation & Downloads

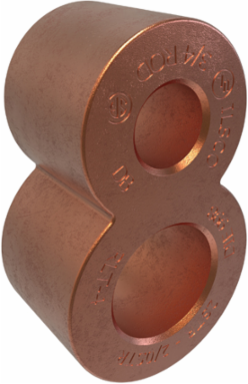

ILSCO RLT-4 Permaground Copper Grounding Connector, Main Conductor Range 2/0-2, Tap Range 2/0-2, Ground Rod Size 3/4in, Rebar Sizes #3-#4, UL, CSA

MPN: RLT-4
UPC: 783669715682
PPN: ILC-RLT-4

CAD

$113.90

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Permaground Copper Grounding Connector, Main Conductor Range 2/0-2, Tap Range 2/0-2, Ground Rod Size 3/4in, Rebar Sizes #3-#4, UL, CSA

Documentation & Downloads

Specifications

Key Specifications

Height: 2.191 in | 55.6514 mm

Weight: 0.46 lbs

Length1.344 in | 34.1376 mm

Width0.875 in | 22.225 mm

Dimensions

Height BX (IN): 4.75

Length (mm): 34.1376

Width BX (IN): 7

Height (mm)55.6514

Weight BX (LB)9.4621

Width (mm)22.225

Testing Standards

CSA File Number: LR-5465

Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

UL / CULUS Specification: UL 467 Listed

CSA StandardC22.2 No. 41

UL Control Number667P

UL File NumberE34440

Additional Class Attributes

Barrel Marking: Hard

ILSCOs Die Index Number: 1011, 998

ILSCOs Die Catalog NumberILD-998

Material and Finish

Conductor Material: Copper

Material: Copper

Connector FinishBare

Conductor Ranges

Conductor Range CU Stranded (Primary, run, main, line): 2/0 Str - 2 Str

Ground Rod Size: 3/4

Conductor Range CU Stranded (Secondary, tap, load)2/0 Str - 2 Str

Rebar Size(s) Main#3 (3/8), #4 (1/2)

Additional Technical Specifications

Conductor Type: Stranded

General

Bag Quantity: 1

Direct Burial: Yes

NEMA Code: S-573-3

Carton Quantity DescriptionSTD PACK QTY 20

Dual RatedNo

UPC Code78366971568

Color

Color: Copper
