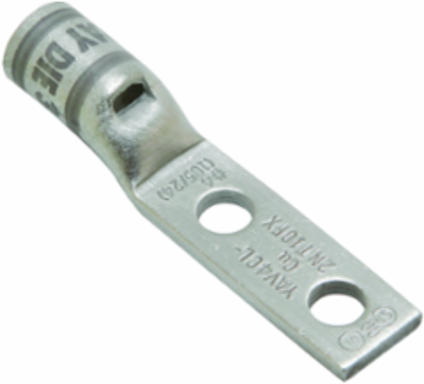

Burndy YAV28L2ENT14FX Copper Flex Conductor Terminal, 4/0 AWG, 1/4 Inch Stud Size, 2.86 Inch Length
- MPN: YAV28L2ENT14FX
- UPC: 781810250730
- PPN: BUR-25021814
CAD
$54.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Flex Conductor Standard Barrel Narrow, 4/0 AWG 4/0 Weld 550/24, 1/4 in, 2.86 in L.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Diameter Min Size inch
- 1.28 in
- Dimension - Length Overall inch
- 2.86 in
- Dimension - Outside Diameter inch
- 0.77 in
- Dimension - Strip Length inch
- 1-1/16
- Dimension - Z inch
- 0.34 in
Dimension - B Length inch1.03 in
Dimension - Bolt Size fraction1/4
Dimension - L Length Overall mm73 mm
Dimension - N inch0.31 in
Dimension - Pad Width inch0.76 in
Dimension - Stud Size inch1/4
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 4/0 (550/#24) DLO
- Conductor - Copper Flex H Size
- 4/0 AWG
- Conductor - Copper Flex K Size
- 4/0 AWG
- Conductor - Copper Str Navy Size
- 200 (61) Navy
- Conductor - CopperWeld Str Size
- 4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG
Conductor - Copper Flex G Size4/0 AWG
Conductor - Copper Flex I Size4/0 AWG
Conductor - Copper Flex M Size4/0 AWG
Conductor - Copper Str Size4/0 AWG
General
- Application
- For Flex Conductors
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC
- 781810250730
Color CodePurple
Die Index15
MaterialCopper
PlatedY
Sub BrandTERMINALS, HYLUG
TypeYAV-L-NTFX
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
