NuTone AE50110DCF Broan® Flex DC™ Series 50-80-110 Selectable CFM <0.3-0.4-0.9 Sones Ventilation Fan Finish Pack Energy Star®
- MPN: AE50110DCF
- UPC: 026715256983
- PPN: BRO-AE50110DCF
CAD
$228.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

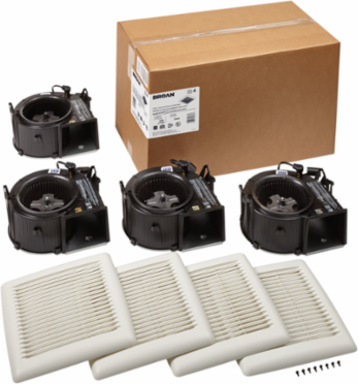

Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 4 grilles and 4 motor/blower wheels, can be made to add the finishing touches to the room. The Flex DC™ Series housing and finish packs provide revolutionary innovations such as foldable mounting ears, a new damper, tighter housing to decrease air leakage, while the finish pack grilles complement any decor.
Features
- FlexFlow™ technology, select between 50, 80 or 110 CFM

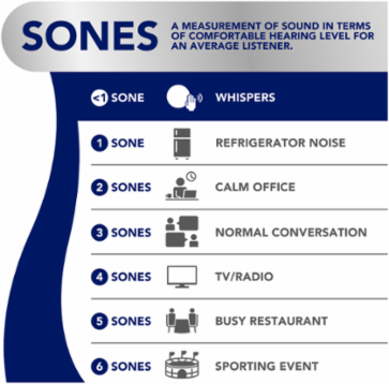

- Quiet operation at <0.3-0.4-0.9 sones
- Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
- TrueSeal™ Damper technology reduces air leakage up to 50%
- Can be installed in a wall if mounted 8-ft. or more above the floor
- ENERGY STAR® certified product
- UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most

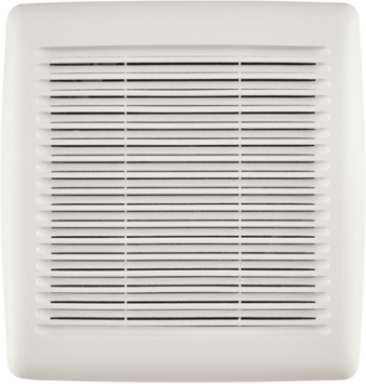

- Brighter white grilles blend in to match most common ceiling paint
- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
- Quiet, energy efficient exhaust fan to help control air quality
- Selectable CFM to properly air ventilation
- Easy to install new / replace existing product from the roomside
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Duct Diameter
- 4
- Grille Width (In)
- 12
- Length
- 9.25 in.
- Width
- 12 in.
- Contain Electronic Equipment
- Yes
- Contain Wood
- No
- Primary Color
- White
- Voltage
- 120
- Automatic Shut Off
- No
- Ceiling Only
- Yes
- Damper Included
- No
- Duct Direction
- Horizontal/Vertical
- Frequency (Hz)
- 60
- Grille Material
- Plastic
- Hardware Included
- Yes
- Humidity Sensing
- No
- Light (Built In)
- No
- Lighted
- No
- Motion Sensing
- No
- Nightlight
- No
- Radiation Damper Available
- Yes
- Retail Peggable
- No
- Selectable Speed
- Yes
- Sones
- <0.3-0.4-0.9
- Wall Control Included
- No

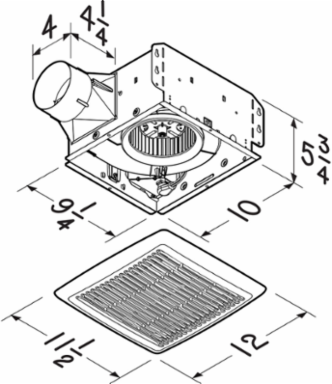

Height5.75 in.
Length11.5 in.
Housing Height (In)5.75
Housing Width (In)10
Contain Chemical/SolventNo
Contain MercuryNo
Manufacturer Warranty3 Years
SeriesBroan Flex DC™ Series
Amperage (Amps)0.3
Built In TimerNo
CFM (HVI)50-80-110
DecorativeNo
Duct ShapeRound
Globe MaterialN/A
Grille ShapeRectangle
Housing MaterialGalvanized
Installation TypeCeiling;Wall
Light DimmableNo
Minimum Construction Space Required2" x 6"
Multi-SpeedNo
Product Switch Control TypeWall Control
Recommended Room Size (Sq Ft)105
Room Side Installation PossibleYes
Sones Max RatingN/A
Type ICYes
Certifications
- CSA Listed
- No
- ETL Listed
- No
- ISTA Rating
- ISTA - 1A
- AMCA Certification
- No
- cETL Listed
- No
- ENERGY STAR Certified
- Yes
- IC Certification
- No
- UL Listed For Use Over Tub & Shower With GFCI
- Yes
cUL ListedYes
HVI CertifiedYes
UL ListedYes
BQB CertificationNo
cULus ListedYes
FCC CertificationNo
Title 24 CompliantNo
Warnock Hersey CertificationNo
