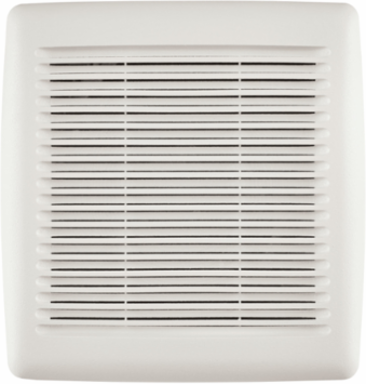

NuTone AE80BF1 Broan Flex™ Series 80 CFM 1.2 Sones Ventilation Fan Finish Pack Energy Star®
- MPN: AE80BF1
- UPC: 026715258741
- PPN: BRO-AE80BF1
CAD
$94.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

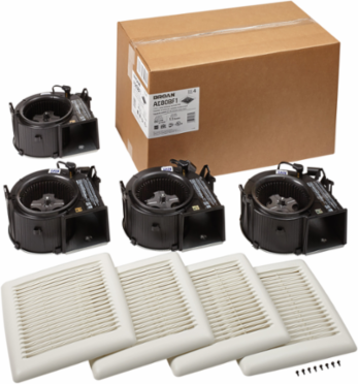

Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 4 grilles and 4 motor/blower wheels, can be made to add the finishing touches to the room. The Flex Series housing and finish packs provide revolutionary innovations such as foldable mounting ears, a new damper, tighter housing to decrease air leakage, while the finish pack grilles complement any decor.
Features
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths

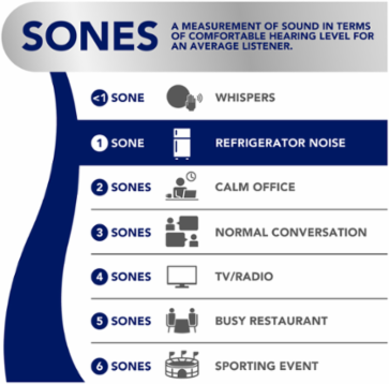

- 1.2 Sones for Quiet performance, enough sound to know your fan is on.
- TrueSeal™ Damper technology reduces air leakage up to 50%*
- EzDuct™ connector can be installed from the room side, with no attic access required
- ENERGY STAR® Certified Product
- UL Listed for use over tubs and showers with a GFCI circuit
- Powerful enough for rooms up to 75 sq. ft.
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
- Testing reflects total fan housing airtightness.
- TrueSeal™ Damper technology reduces air leakage up to 50%
- Brighter white grilles blends to match most common ceiling paint
- Easy to install and/or replace existing product for DIY'ers
- Powerful enough for rooms (including bathroom) up to 75 sq. ft.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Duct Diameter
- 4

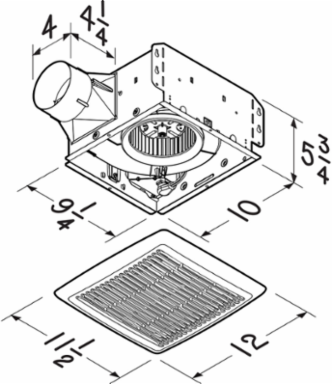

- Grille Width (In)
- 12
- Length
- 9.25 in.
- Width
- 12 in.
- Contain Electronic Equipment
- Yes
- Contain Wood
- No
- Series
- Broan Flex™ Series
- Amperage (Amps)
- 0.3
- Built In Timer
- No
- CFM (HVI)
- 80
- Decorative
- No
- Duct Shape
- Round
- Globe Material
- N/A
- Grille Shape
- Rectangle
- Housing Material
- Galvanized
- Installation Type
- Ceiling;Wall
- Light Dimmable
- No
- Minimum Construction Space Required
- 2" x 6"
- Multi-Speed
- No
- Product Switch Control Type
- Wall Control
- Recommended Room Size (Sq Ft)
- 75
- Room Side Installation Possible
- Yes
- Sones Max Rating
- N/A
- Type IC
- No
Height5.75 in.
Length11.5 in.
Housing Height (In)5.75
Housing Width (In)10
Contain Chemical/SolventNo
Contain MercuryNo
Primary ColorWhite
Voltage120
Automatic Shut OffNo
Ceiling OnlyNo
Damper IncludedNo
Duct DirectionHorizontal/Vertical
Frequency (Hz)60
Grille MaterialPlastic
Hardware IncludedYes
Humidity SensingNo
Light (Built In)No
LightedNo
Motion SensingNo
NightlightNo
Radiation Damper AvailableYes
Retail PeggableNo
Selectable SpeedNo
Sones1.2
Wall Control IncludedNo
Certifications
- CSA Listed
- No
- ETL Listed
- No
- ISTA Rating
- ISTA - 1A
- AMCA Certification
- Yes
- cETL Listed
- No
- ENERGY STAR Certified
- Yes
- IC Certification
- No
- UL Listed For Use Over Tub & Shower With GFCI
- Yes
cUL ListedYes
HVI CertifiedYes
UL ListedYes
BQB CertificationNo
cULus ListedYes
FCC CertificationNo
Title 24 CompliantNo
Warnock Hersey CertificationNo
