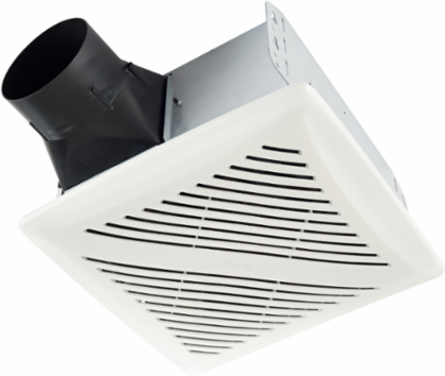

NuTone AE50110DCS Broan® Flex DC™ Series 50-80-110 Selectable CFM <0.3-0.4-0.9 Sones Humidity Sensing Ventilation Fan Energy Star®
- MPN: AE50110DCS
- UPC: 026715257010
- PPN: BRO-AE50110DCS
CAD
$317.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

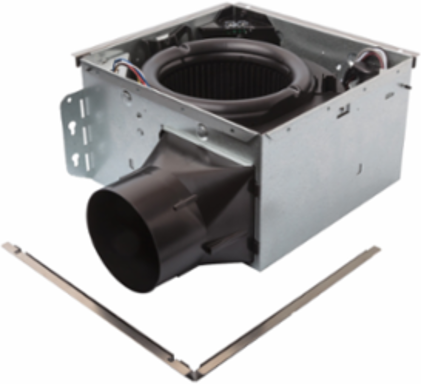

Broan® AE50110DCS Flex DC™ Series Humidity Sensing Exhaust Bath Fan, ENERGY STAR® offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EZ Duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. The humidity sensing feature will automatically turn the fan on when a preset level has been reached, thus allowing for proper ventilation throughout the room. This energy efficient fan operates at a selectable CFM range of 50-80-110 at a quiet operation of <0.3-0.4-0.9 sones.
Features
- FlexFlow™ technology, select between 50, 80 or 110 CFM

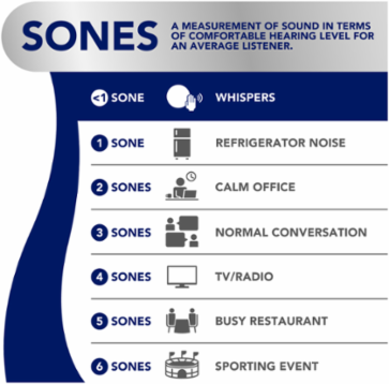

- Quiet operation at <0.3-0.4-0.9 sones
- Sensaire™ Humidity control automatically turns fans ON when a rapid to moderate (user adjustable) increase of humidity is sensed or when humidity rises above the user-adjustable set-point (50% to 80% RH)
- Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
- Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
- Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- Plug in, permanently lubricated, brushless DC motor – engineered for continuous operation
- UL Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
- ENERGY STAR® certified product
- Quiet, energy efficient exhaust fan to help control air quality
- Sensaire™ humidity sensing provides ventilation when needed
- Selectable CFM For flexible installation
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Duct Diameter
- 4
- Grille Width (In)
- 12.25
- Length
- 9.25 in.
- Weight
- 7.38 lbs.
- Contain Chemical/Solvent
- No
- Contain Mercury
- No
- Manufacturer Warranty
- 3 Years
- Series
- Broan Flex DC™ Series
- Amperage (Amps)
- 0.3
- Built In Timer
- Yes
- Certification File No.
- E17814
- Damper Included
- No
- Duct Direction
- Horizontal/Vertical
- Frequency (Hz)
- 60
- Grille Material
- Plastic
- Hardware Included
- Yes
- Humidity Sensing
- Yes
- Light (Built In)
- No
- Lighted
- No
- Motion Sensing
- No
- Nightlight
- No
- Radiation Damper Available
- Yes
- Retail Peggable
- No
- Selectable Speed
- Yes
- Sones
- <0.3-0.4-0.9
- Wall Control Included
- No
Height5.75 in.
Length11.5 in.
Housing Height (In)5.75
Housing Width (In)10
Width12.25 in.
Contain Electronic EquipmentYes
Contain WoodNo
Primary ColorWhite
Voltage120
Automatic Shut OffYes
Ceiling OnlyYes
CFM (HVI)50-80-110
DecorativeNo
Duct ShapeRound
Globe MaterialN/A
Grille ShapeRectangle
Housing MaterialGalvanized
Installation TypeCeiling
Light DimmableNo
Minimum Construction Space Required2" x 6"
Multi-SpeedNo
Product Switch Control TypeWall Control
Recommended Room Size (Sq Ft)105
Room Side Installation PossibleYes
Sones Max RatingN/A
Type ICYes
Certifications
- CSA Listed
- No
- ETL Listed
- No
- ISTA Rating
- ISTA - 1A
- AMCA Certification
- No
- cETL Listed
- No
- ENERGY STAR Certified
- Yes
- IC Certification
- No
- UL Listed For Use Over Tub & Shower With GFCI
- Yes
cUL ListedYes
HVI CertifiedYes
UL ListedYes
BQB CertificationNo
cULus ListedYes
FCC CertificationNo
Title 24 CompliantNo
Warnock Hersey CertificationNo
