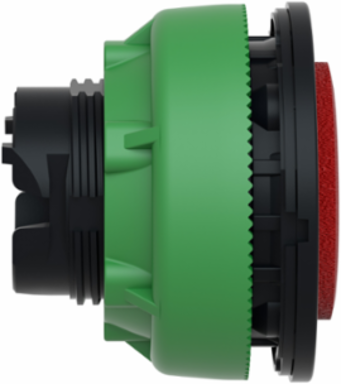

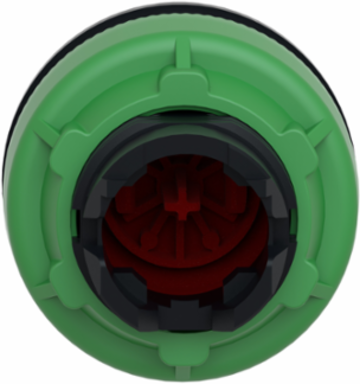

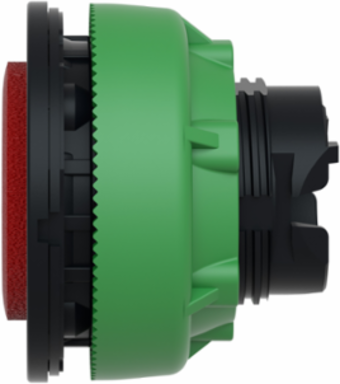

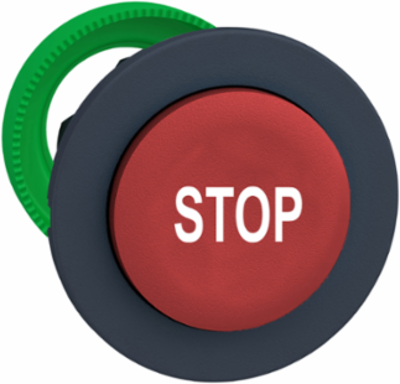

Schneider Electric ZB5FL434 Harmony XB5 30mm Flush Mounted Push Button Head, Red, Spring Return, IP69
Schneider Electric ZB5FL434 Harmony XB5 30mm Flush Mounted Push Button Head, Red, Spring Return, IP69
- MPN: ZB5FL434
- PPN: SCH-ZB5FL434
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$24.38/ EA
Description
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Specifications
Environment
- Product Certifications
- UL listed || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsUL 508 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Overvoltage Categoryclass II IEC 60536
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Cad Overall Height
- 37 mm
- Cad Overall Width
- 37 mm
Net Weight0.031 kg
Mechanical Durability10000000 cycles
Cad Overall Depth32 mm
Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
- Sale Per Indivisible Quantity
- 1
- Operator Profile

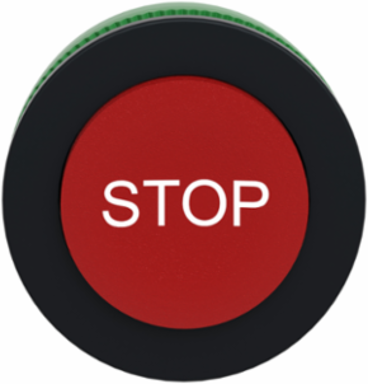

- red projecting, STOP white)
- Device Short Name
- ZB5F
Mounting Diameter30.5 mm
Product Or Component Typehead for non-illuminated push-button
Head Typebuilt-in-flush
Bezel Materialdark grey plastic
Product CompatibilityZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
