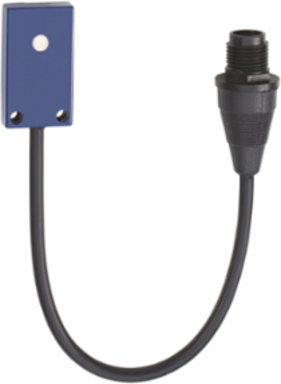

Telemecanique Sensors XX7F1A2NAL01M12 Ultrasonic sensor XX, parallelepipedic, sensing range 0.1 m, output digital, NO, pre-cabled M12 connector, cable 0.15 m, adjustable sensing range
- MPN: XX7F1A2NAL01M12
- PPN: TES-XX7F1A2NAL01M12
CAD
$389.52
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensor XX, parallelepipedic, sensing range 0.1 m, output digital, NO, pre-cabled M12 connector, cable 0.15 m, adjustable sensing range
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Voltage drop | 1 V |
|---|---|
| Delay first up | 20 ms |
| Status LED | Supply on: 1 LED (green), output state: 1 LED (yellow) |
| Delay response | 4 ms |
| Minimum size of detected object | Cylinder diameter 2.5 mm, flat bar 1 mm wide |
|---|---|
| Current consumption | 25 mA |
| Switching frequency | 100 Hz |
| Delay recovery | 4 ms |
Main
| Range of product | Telemecanique Ultrasonic sensors XX |
|---|---|
| Series name | General purpose |
| Sensor design | Flat form 33 x 19 x 7.6 |
| Material | Plastic |
| Discrete output function | 1 NO |
| Rated supply voltage (Us) | 12...24 V DC with reverse polarity protection |
| Electrical connection | Remote male connector M12 4 pins, 0.15 m cable length |
| Front material | Epoxy |
| Sensor type | Ultrasonic sensor |
|---|---|
| Sensor name | XX7 |
| Detection system | Diffuse |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output type | NPN |
| Enclosure material | ULTEM |
Environment
| IP degree of protection | IP67 conforming to IEC 60529 |
|---|---|
| Standards | IEC 60947-5-2 |
| Vibration resistance | +/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Marking | CE |
|---|---|
| Product certifications | UL |
| Shock resistance | 30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
