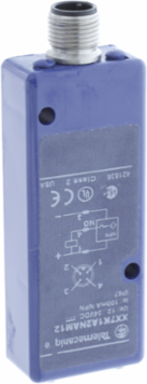

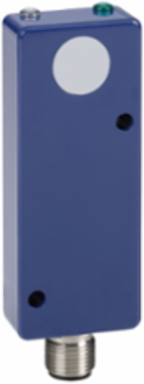

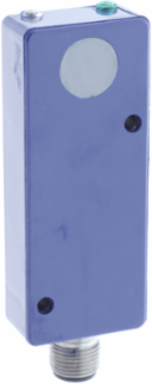

Telemecanique Sensors XX7K1A2PAM12 Ultrasonic sensors XX, ultrasonic sensor parallelepipedic, Sn 0.25 m, NO, M12 connector
- MPN: XX7K1A2PAM12
- PPN: TES-XX7K1A2PAM12
- UNSPSC: 39122230
CAD
$760.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This flat (diffuse system) ultrasonic sensor has a ULTEM case. It has a supply voltage of 12V to 24V DC. This general purpose flat format parallelepipedic ultrasonic sensor, is mountable directly on a surface or bracket, thanks to 2 screw fixing points. ULTEM® high strength case makes it ideal for high temperature environments. 2 LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in hot environments up to +50°C. It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.051-0.254 m
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- Detection System
- diffuse
- Electrical Connection
- male connector M12 4 pins
- [Sn] Nominal Sensing Distance
- 0.25-0.25 m fixed
Discrete Output TypePNP
Type Of Output Signaldiscrete
Sensor NameXX7
Materialplastic
Ip Degree Of ProtectionIP67 IEC 60529
Beam Angle14 °
Sensor Typeultrasonic sensor
Sensor Designflat form 74 x 30 x 16
Complementary
- Repeat Accuracy
- 0.7 %
- Maximum Switching Current
- 100 mA
- Switching Frequency
- <= 80 Hz
- Maximum Voltage Drop
- 1 V
- Transmission Frequency
- 500 kHz
- Marking
- CE
- Net Weight
- 0.05 kg
- Maximum Differential Travel
- 0.35 mm
- Maximum Delay First Up
- 350 ms
- Enclosure Material
- ULTEM
- Front Material
- silicone
Height30 mm
Minimum Size Of Detected Objectcylinder diameter 1.6 mm
Maximum Delay Response5 ms
Status Ledsupply on 1 LED green) || output state 1 LED yellow)
[Sa] Assured Operating Distance0.051-0.254 m
Blind Zone0-51 mm
Current Consumption60 mA
Maximum Delay Recovery5 ms
Supply Voltage Limits10-28 V DC
Width17 mm
Depth85 mm
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation0-50 °C
StandardsIEC 60947-5-2
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111225EN
