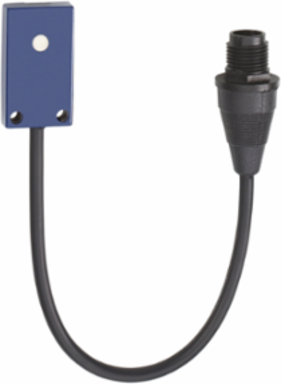

Telemecanique Sensors XX7F1A2PAL01M12 Ultrasonic sensors XX, ultrasonic sensor parallelepipedic, Sn 0.1 m, NO, pre cabled M12 0.15 m

MPN: XX7F1A2PAL01M12
PPN: TES-XX7F1A2PAL01M12
UNSPSC: 39122230

$389.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This flat (diffuse system) ultrasonic sensor has a ULTEM case. It has a supply voltage of 12V to 24V DC. This general purpose flat format parallelepipedic ultrasonic sensor, is mountable directly on a surface or bracket, thanks to 2 screw fixing points. ULTEM® high strength case makes it ideal for high temperature environments. 2 LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-20°C) and hot environments (+65°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.

Documentation & Downloads

Specifications

Key Specifications

[Us] Rated Supply Voltage	12...24 V DC reverse polarity protection
Discrete Output Function	1 NO
Range Of Product	Telemecanique Ultrasonic sensors XX
[Sd] Sensing Range	0.0064-0.102 m
Wiring Technique	3-wire
Series Name	general purpose
Detection System	diffuse
Electrical Connection	remote male connector M12 4 pins, 0.15 m
[Sn] Nominal Sensing Distance	0.1-0.1 m fixed

Discrete Output Type	PNP
Type Of Output Signal	discrete
Sensor Name	XX7
Material	plastic
Ip Degree Of Protection	IP67 conforming to IEC 60529
Beam Angle	14 °
Sensor Type	ultrasonic sensor
Sensor Design	flat form 33 x 19 x 7.6

Complementary

Repeat Accuracy	0.7 %
Maximum Switching Current	100 mA
Switching Frequency	<= 100 Hz
Maximum Voltage Drop	1 V
Transmission Frequency	500 kHz
Marking	CE
Net Weight	0.04 kg
Maximum Differential Travel	0.7 mm
Maximum Delay First Up	20 ms
Enclosure Material	ULTEM
Front Material	epoxy

Height	19 mm
Minimum Size Of Detected Object	cylinder diameter 2.5 mm \|\| flat bar 1 mm wide
Maximum Delay Response	4 ms
Status Led	supply on 1 LED green) \|\| output state 1 LED yellow)
[Sa] Assured Operating Distance	0.0064-0.102 m
Blind Zone	0-6.4 mm
Current Consumption	25 mA
Maximum Delay Recovery	4 ms
Supply Voltage Limits	10-28 V DC
Width	8 mm
Depth	33 mm

Environment

Product Certifications	UL
Resistance To Electromagnetic Fields	10 V/m level 3 IEC 61000-4-3
Vibration Resistance	+/-1 mm 10-55 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-80 °C
Resistance To Fast Transients	1 kV level 3 IEC 61000-4-4

Ambient Air Temperature For Operation	-20-65 °C
Standards	IEC 60947-5-2
Shock Resistance	30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge	8 kV level 4 IEC 61000-4-2

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP111234EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Circularity Profile	ENVEOLI111225EN

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
