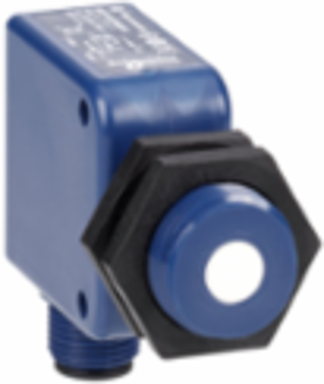

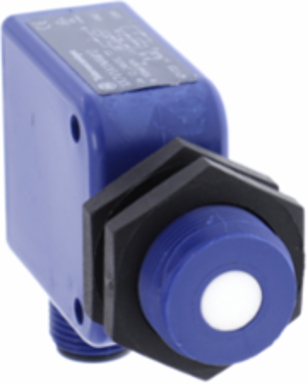

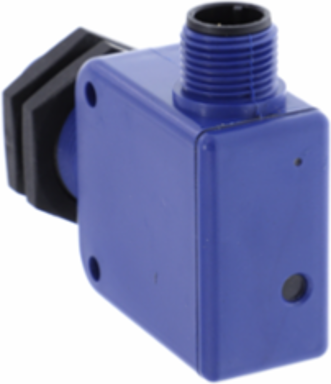

Telemecanique Sensors XX7V1A1PAM12 Ultrasonic sensors XX, ultrasonic sensor parallelepipedic, Sn 0.5 m, NO, M12 connector
Telemecanique Sensors XX7V1A1PAM12 Ultrasonic sensors XX, ultrasonic sensor parallelepipedic, Sn 0.5 m, NO, M12 connector
- MPN: XX7V1A1PAM12
- PPN: TES-XX7V1A1PAM12
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$207.27/ EA
Description
This flat (diffuse system) ultrasonic sensor has a VALOX case. It has a supply voltage of 12V to 24V DC. This general purpose parallelepipedic ultrasonic sensor, is mountable directly on a surface or bracket, thanks to its cylindrical thread and 2 fixing nuts. VALOX® PBT high strength case makes it ideal for high temperature environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-20°C) and hot environments (+65°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
Specifications
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation-20-65 °C
StandardsIEC 60947-5-2
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111225EN
Complementary
- Repeat Accuracy
- 1.27 %
- Maximum Switching Current
- 100 mA
- Switching Frequency
- <= 40 Hz
- Maximum Voltage Drop
- 1 V
- Transmission Frequency
- 300 kHz
- Marking
- CE
- Current Consumption
- 40 mA
- Maximum Delay Recovery
- 10 ms
- Supply Voltage Limits
- 10-28 V DC
- Width
- 18 mm
- Depth
- 60 mm
Height44 mm
Minimum Size Of Detected Objectcylinder diameter 2.5 mm 0.15 m || flat bar 1 mm wide 0.15 m
Maximum Delay Response10 ms
Status Ledsupply on 1 LED green) || output state 1 LED yellow)
[Sa] Assured Operating Distance0.051-0.508 m teach mode)
Blind Zone0-51 mm
Maximum Differential Travel2.5 mm
Maximum Delay First Up100 ms
Enclosure Materialvalox
Front Materialepoxy
Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.051-0.508 m
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- Detection System
- diffuse
- Electrical Connection
- male connector M12 4 pins
- [Sn] Nominal Sensing Distance
- 0.5-0.5 m adjustable with remote teach push-button
Discrete Output TypePNP
Type Of Output Signaldiscrete
Sensor NameXX7
Materialplastic
Ip Degree Of ProtectionIP67 IEC 60529
Beam Angle12 °
Sensor Typeultrasonic sensor
Sensor Designflat form 18 x 33 x 60 + cylindrical M18
