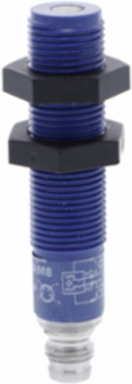

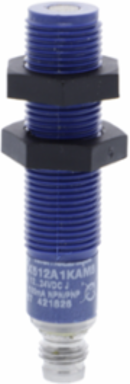

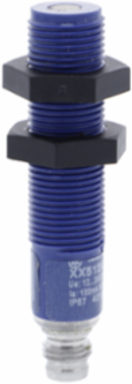

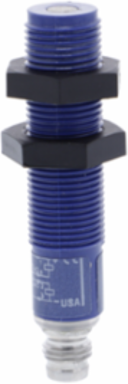

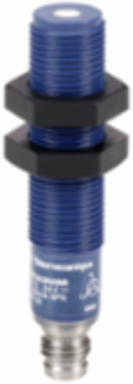

Telemecanique Sensors XX512A1KAM8 Ultrasonic sensors XX, ultrasonic sensor cylindrical M12, Sn 0.05 m, 2 NO, M8 connector
Telemecanique Sensors XX512A1KAM8 Ultrasonic sensors XX, ultrasonic sensor cylindrical M12, Sn 0.05 m, 2 NO, M8 connector
- MPN: XX512A1KAM8
- PPN: TES-XX512A1KAM8
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$323.40/ EA
Description
This cylindrical (diffuse system) ultrasonic sensor has a ULTEM case. It has a supply voltage of 12V to 24V DC. This general purpose cylindrical ultrasonic sensor, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. ULTEM® high strength case makes it ideal for high temperature environments. 2 LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-20°C) and hot environments (+65°C). It is IEC 60947-5-2 compliant.
Specifications
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation-20-65 °C
StandardsIEC 60947-5-2
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111225EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Repeat Accuracy
- 0.7 %
- Maximum Switching Current
- 100 mA overload and short-circuit protection
- Switching Frequency
- <= 125 Hz
- Maximum Voltage Drop
- 1 V
- Transmission Frequency
- 500 kHz
- Threaded Length
- 38 mm
- Blind Zone
- 0-6.4 mm
- Current Consumption
- 25 mA
- Deviation Angle From 90° Of Object To Be Detected
- -10-10 °
- Maximum Delay Recovery
- 2 ms
- Supply Voltage Limits
- 10-28 V DC
- Width
- 12 mm
- Depth
- 50 mm
Height12 mm
Minimum Size Of Detected Objectcylinder diameter 2.5 mm || flat bar 1 mm wide
Maximum Delay Response2 ms
Status Ledsupply on 1 LED green) || output state 1 LED yellow)
[Sa] Assured Operating Distance0.0064-0.051 m
MarkingCE
Net Weight0.011 kg
Maximum Differential Travel0.7 mm
Thread TypeM12 x 1
Maximum Delay First Up20 ms
Enclosure MaterialULTEM
Front Materialepoxy
Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Discrete Output Function
- 2 NO
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.0064-0.051 m
- Wiring Technique
- 4-wire
- Series Name
- general purpose
- Detection System
- diffuse
- Electrical Connection
- male connector M8 4 pins
- [Sn] Nominal Sensing Distance
- 0.05-0.05 m fixed
Discrete Output TypePNP and NPN
Type Of Output Signaldiscrete
Sensor NameXX5
Materialplastic
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Beam Angle11 °
Sensor Typeultrasonic sensor
Sensor Designcylindrical M12
