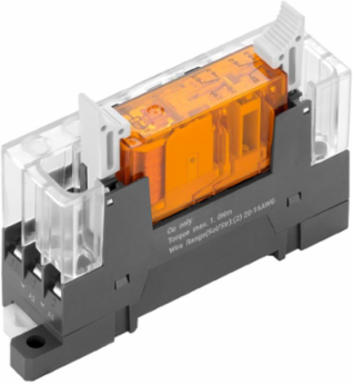

Weidmuller 2759070000 FSKIT 24VDC 3NO1NC FG LD AGSNO AU
- MPN: 2759070000
- PPN: WDM-2759070000
CAD
$72.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
FSKIT 24VDC 3NO1NC FG LD AGSNO AU
Documentation & Downloads
Specifications
Additional
- Nominal Control Voltage
- 24 V DC 10%
- Rated Current DC
- 20 mA
- Max Switching Voltage AC
- 400 V
- AC Switching Capacity (Resistive)
- 1500 VA
- Switch-on Delay
- 20 ms
- Mechanical Service Life
- 10 million switching cycles
- Contact Type
- 3 NO, 1 NC, forcibly guided (EN 61810-3 type A)
- Rated Voltage (Insulation)
- 250 V
- Weight
- 48.12 g
- Wire Connection Method
- Screw connection
- Tightening Torque
- 0.4 Nm min, 1 Nm max
- Wire Cross Section, Finely Stranded
- 0.5 to 1.5 mm2 (AWG 20 to AWG 14)
- Protective Circuit
- Free-wheeling diode
- Storage Temperature Range
- -40 C to 70 C
- Insulation Coordination
- Basic insulation
- Surge Voltage Category
- III
- Dielectric Strength Control-Load Side
- 2.5 kV eff / 1 min
- Dielectric Strength Open Contact
- 1.5 kV eff / 1 min
- Operating Altitude
- 2000 m
- Compliance
- cULus Listed, RoHS Compliant, CQC Certified
Continuous Current6 A
Rated Switching Voltage250 V AC
Max Switching Voltage DC250 V
DC Switching Capacity (Resistive)144 W @ 24 V
Switch-off Delay20 ms
Power Rating480 mW
Operating Temperature Range-25 C to 55 C
Dimensions (W x H x D)22.4 mm x 89.4 mm x 59.8 mm
Mounting RailTS 35
Stripping Length7 mm
Wire Cross Section, Solid0.5 to 1.5 mm2 (AWG 20 to AWG 14)
MaterialAgSnO gold-plated contacts
Status IndicatorGreen LED
Humidity5 85% relative humidity, no condensation
Pollution Severity2
Clearance and Creepage Distances3 mm
Dielectric Strength Neighbouring Contacts2.5 kV eff / 1 min
Dielectric Strength Mounting Rail4 kV eff / 1 min
Protection DegreeIP10
