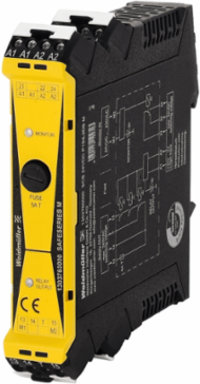

Weidmuller 1303760000 SCS 24VDC P1SIL3DS M
- MPN: 1303760000
- PPN: WDM-1303760000
CAD
$273.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet

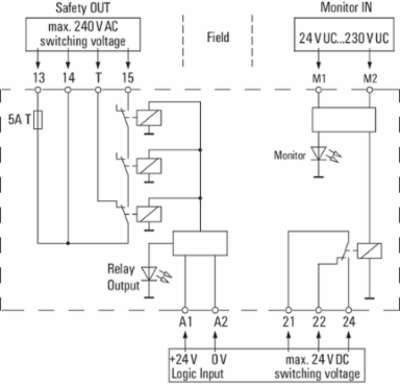

Description
SAFESERIES, Safety relay,24 V DC ± 20%, 35 mA , Max. switching current, internal fuse : 5 A (refer to derating curve), SIL 3, DIN EN 61508
Documentation & Downloads
Specifications
General Data
- Rail
- TS 35
- Noxious gas resistance to EN 60068-2-60
- Yes (art. No.: 1304040000 only)
Colourblack, yellow

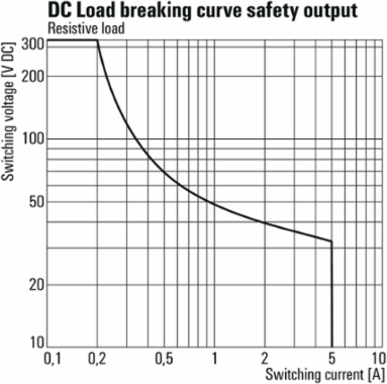

Output (Safety Circuit)
- Contact base material
- AgNi 0.15 gold flashed
- Max. permitted switching voltage
- 250 V AC / 30 V DC

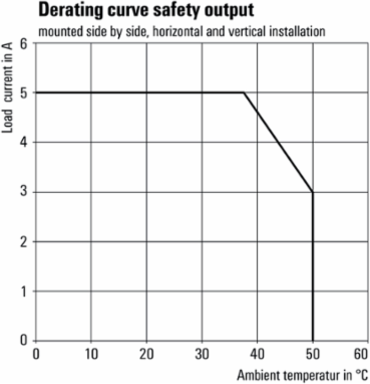

- Max. switching current, internal fuse
- 5 A (refer to derating curve)
- Max. switching capacity
- 2000 VA
- External back-up fuse
- 5 A time lag
- Switch-on time
- typ. 7 ms
- Min. switching capacity
- 10 mA @ 12 V
Contact designNO contact
Max. permitted switching current8 A
Max. switching current, external fuse5 A (refer to derating curve)
Internal fuse5 A time-lag
Short circuit resistanceNo
Switch-off timetyp. 14 ms
Approvals
- Approvals
- CE, CULUS, EAC, FUSAFETY
- UL File Number Search
- E223474
ROHSConform

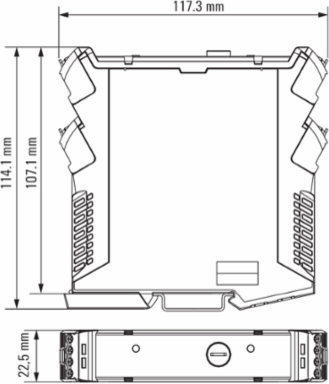

Dimensions And Weights
- Width
- 22.5 mm
- Height
- 117.3 mm
- Depth
- 114.1 mm
- Net weight
- 200 g
Width (inches)0.886 inch
Height (inches)4.618 inch
Depth (inches)4.492 inch
Input (Safety Circuit)
- Rated control voltage
- 24 V DC ± 20%
- Guaranteed current consumption of 24 VDC -10%
- 35 mA
- Status indicator
- LED yellow
Current consumption42 mA
Inrush current< 250 mA / < 5 ms
Protective circuitReverse polarity protection, Free-wheeling diode
Connection Data
- Wire connection method
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.13 mm²
- Wire connection cross section AWG, min.
- AWG 26
- Wire cross-section, solid, min.
- 0.2 mm2
- Wire connection cross-section, finely stranded, min.
- 0.2 mm2
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.2 mm2
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.2 mm2
- Twin wire-end ferrules, min.
- 0.5 mm2
- Blade size
- size PH0
Tightening torque, min.0.4 Nm
Clamping range, rated connection1.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 12
Wire cross-section, solid, max.2.5 mm2
Wire connection cross section, finely stranded, max.2.5 mm2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.2.5 mm2
Twin wire-end ferrules, max.1.5 mm2
Safety-Related Basic Specifications
- Device type
- A
- T
- 12 Years
- Safety standard
- DIN EN 61508
Hardware fault tolerance (HFT)2
Safety categorySIL 3
Input (Monitoring)
- Rated control voltage
- 24 V UC…230 V UC ±10 %
- Status indicator
- LED yellow
Current consumption23 mA @ 24 V DC, 4,4 mA @ 230 V AC
Protective circuitRectifier
Classifications
- ETIM 6.0
- EC001449
- eClass 9.0
- 27-37-18-19
- eClass 10.0
- 27-37-18-19
ETIM 7.0EC001449
eClass 9.127-37-18-19
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Rated voltage
- 300 V
- Pollution severity
- 2
- Dielectric strength, Input/Output
- 4 kVeff / 1 min
- Dielectric strength output – output
- 4 kVeff / 1 min
- Dielectric strength to mounting rail
- 4 kVeff / 1 Min.
Surge voltage categoryIII
Protection degreeIP20
Creepage and clearance distance input – output≥ 5.5 mm
Creepage and clearance distance output – output≥ 5.5 mm
Impulse withstand voltage6 kV (1.2/50 µs)
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature, min.
- -25 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.50 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...50 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E223474
Output (Monitoring)
- Contact design
- CO contact
- Max. permitted switching voltage
- 24 V DC
- Switch-on time
- typ. 17 ms
- Min. switching capacity
- 1 mA @ 1 V
Contact base materialAgNi 5µm Au
Max. allowed switching current30 mA
Short circuit resistantNo
Further Details Of Approvals / Standards
- Standards
- EN 50178, EN 61000, EN 61326-3-2
Certificate no. (cULus)E223474
