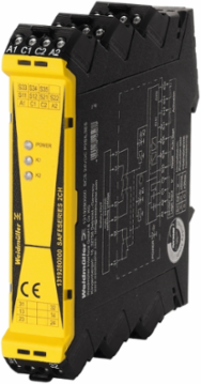

Weidmuller 1319280000 SCS 24VDC P2SIL3ES
- MPN: 1319280000
- PPN: WDM-1319280000
CAD
$336.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAFESERIES, Safety relay,24 V DC ±15 %, 24 VDC +15% / -10% during auto-start, 35 mA, 6, SIL 3, DIN EN 61508, EN ISO 13849-1 (PLe)
Documentation & Downloads
Specifications

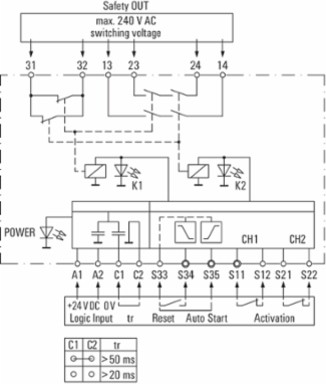

Monitoring Circuit
| Connection designation | S11, S12, S21, S22 |
|---|---|
| Operating voltage | 22 V DC, from internal power supply |
| Input | 2, each externally bridgeable |
|---|

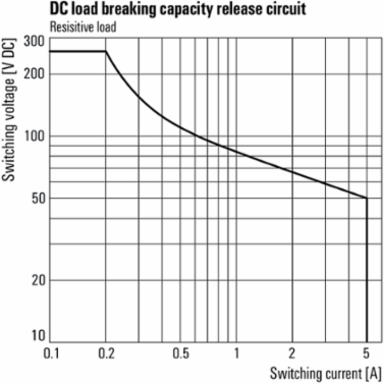

Output (Release Circuit)
| Connection designation | 13, 14, 23, 24 |
|---|---|
| Contact base material | AgSnO |
| Max. permissible switching current | 6 A |
| Max. switching capacity | 2000 VA |
| Turn-on time | 55 ms (C1/C2 bridged, switched via A1/A2), 30 ms (opening/closing of monitoring circuit) |
| Min. switching capacity | 10 mA @ 12 V |
| Contact design | 2 NO positively-driven (EN 50205 type B) |
|---|---|
| Switching voltage AC, max. | 250 V |
| Max. switching current, external fuse | 5 A |
| External back-up fuse | 5 A time lag |
| Turn-off time | 20 ms (C1/C2 bridged, switched via A1/A2), 15 ms (opening/closing of monitoring circuit) |
General Data
| Rail | TS 35 |
|---|
| Colour | black, yellow |
|---|
Output (Safety Circuit)
| External back-up fuse | 5 A time lag |
|---|
Starting Circuit
| Anschlussbezeichnung | S33, S34, S35 |
|---|---|
| Function | falling edge (button via S33/S34), rising edge (permanent bridge via S33/S35) |
| Operating voltage | 22 V DC, from internal power supply |
|---|
Feedback Output
| Connection designation | 31, 32 |
|---|---|
| Switching voltage AC, max. | 250 V |
| Contact design | 1 NC positively-driven (EN 50205 type B) |
|---|---|
| Max. switching current. | 1 A |
Approvals
| Approvals | CE, EAC, FUSAFETY |
|---|
| ROHS | Conform |
|---|

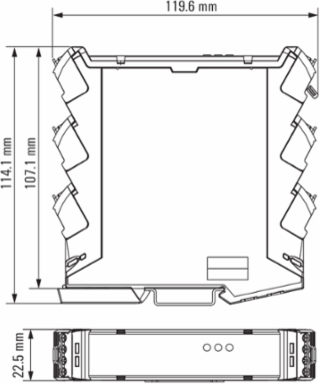

Dimensions And Weights
| Width | 22.5 mm |
|---|---|
| Height | 119.6 mm |
| Depth | 114.1 mm |
| Net weight | 292 g |
| Width (inches) | 0.886 inch |
|---|---|
| Height (inches) | 4.709 inch |
| Depth (inches) | 4.492 inch |
Connection Data
| Wire connection method | Screw connection |
|---|---|
| Tightening torque, max. | 0.6 Nm |
| Clamping range, min. | 0.13 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire cross-section, solid, min. | 0.2 mm2 |
| Wire connection cross-section, finely stranded, min. | 0.2 mm2 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.2 mm2 |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.2 mm2 |
| Twin wire-end ferrules, min. | 0.5 mm2 |
| Blade size | size PH0 |
| Tightening torque, min. | 0.4 Nm |
|---|---|
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire cross-section, solid, max. | 2.5 mm2 |
| Wire connection cross section, finely stranded, max. | 2.5 mm2 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2.5 mm2 |
| Twin wire-end ferrules, max. | 1.5 mm2 |
Input (Power Supply)
| Connection designation | A1, A2, C1, C2 |
|---|---|
| Current consumption | 55 mA (release circuit enabled), 6 mA (release circuit not enabled) |
| Inrush current | 750 mA / 5 ms (for starting with S33/S34 (start circuit)), 2 A / 20 ms (for starting with A1/A2 (autostart)) |
| Status display | LED green: supply, Yellow LED: signal |
| Short-circuit detection | Yes, max. 4 s up to disconnection (thermistor) |
| Rated control voltage | 24 V DC ±15 %, 24 VDC +15% / -10% during auto-start |
|---|---|
| Guaranteed current consumption at 24 V DC -10% | 35 mA |
| Response time | with bridge via C1/C2: typ. 50 ms, without bridge via C1/C2: typ. 20 ms |
| Protective circuit | Reverse polarity protection, Free-wheeling diode |
Safety-Related Basic Specifications
| Device type | A |
|---|---|
| T | 12 Years |
| Safety standard | DIN EN 61508, EN ISO 13849-1 (PLe) |
| Hardware fault tolerance (HFT) | 1 |
|---|---|
| Safety category | SIL 3 |
Classifications
| ETIM 6.0 | EC001449 |
|---|---|
| eClass 9.0 | 27-37-18-19 |
| eClass 10.0 | 27-37-18-19 |
| ETIM 7.0 | EC001449 |
|---|---|
| eClass 9.1 | 27-37-18-19 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Rated voltage | 300 V |
|---|---|
| Pollution severity | 2 |
| Dielectric strength, Input/Output | 4 kVeff / 1 min |
| Dielectric strength output – output | 4 kVeff / 1 min |
| Dielectric strength to mounting rail | 4 kVeff / 1 Min. |
| Surge voltage category | III |
|---|---|
| Protection degree | IP20 |
| Creepage and clearance distance input – output | ≥ 5.5 mm |
| Creepage and clearance distance output – output | ≥ 5.5 mm |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
Temperatures
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
|---|---|
| Operating temperature, min. | -25 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 55 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -25 °C...55 °C |
Further Details Of Approvals / Standards
| Standards | EN 50178, EN 61000, EN 61326-3-2, EN ISO 13849-1 (PLe) |
|---|
| Equipment for furnaces | EN 50156 |
|---|
