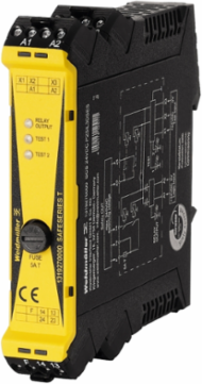

Weidmuller 1319270000 SCS 24VDC P2SIL3DSES

MPN: 1319270000
PPN: WDM-1319270000

$325.73

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

SAFESERIES, Safety relay,24 V DC -15 / +20%, 35 mA , Max. switching current, internal fuse : 5 A (refer to derating curve), SIL 3, DIN EN 61508

Documentation & Downloads

Specifications

General Data

Rail	TS 35

Colour	black, yellow

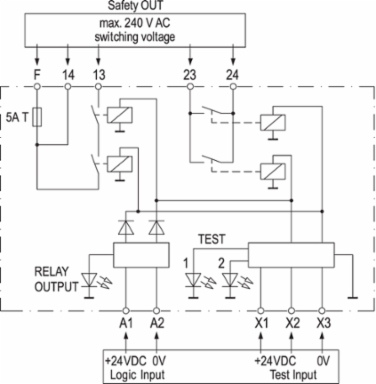

Output (Safety Circuit)

Contact base material	AgNi 0.15 gold flashed
Max. permitted switching voltage	250 V AC

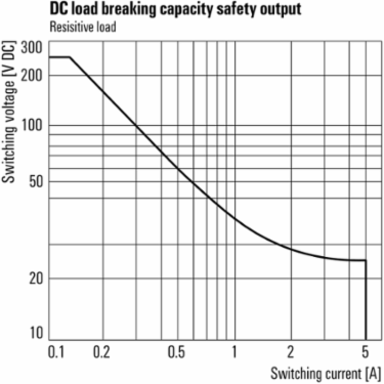

Max. switching current, internal fuse	5 A (refer to derating curve)
Max. switching capacity	2000 VA
External back-up fuse	5 A time lag
Switch-on time	< 5.5 ms (DTS), < 5 ms (ETS)
Min. switching capacity	10 mA @ 12 V

Contact design	1 x de-energised to safe (NO contact), 1 x energised to safe (NO contact)
Max. permitted switching current	8 A
Max. switching current, external fuse	5 A (refer to derating curve)
Internal fuse	5 A time-lag
Short circuit resistance	No
Switch-off time	< 4 ms (DTS), < 4 ms (ETS)

Approvals

Approvals	CE, EAC, FUSAFETY

ROHS	Conform

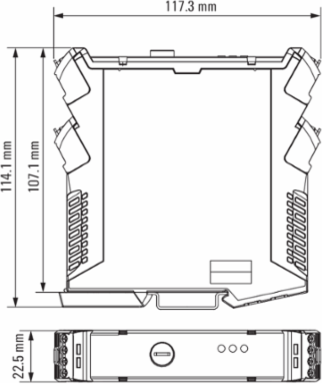

Dimensions And Weights

Width	22.5 mm
Height	117.3 mm
Depth	114.1 mm
Net weight	200 g

Width (inches)	0.886 inch
Height (inches)	4.618 inch
Depth (inches)	4.492 inch

Input (Safety Circuit)

Rated control voltage	24 V DC -15 / +20%
Guaranteed current consumption of 24 VDC -10%	35 mA
Pull-in/drop-out voltage DC coil	17 V / 12.5 V (DTS)
Protective circuit	Rectifier

Current consumption	45 mA
Inrush current	≤ 80 mA / 40 ms
Status indicator	LED yellow

Test Inputs (Safety Circuit)

Rated control voltage	24 V DC
Status indicator	LED red flashing: test input is triggered

Number of test inputs	2

Connection Data

Wire connection method	Screw connection
Tightening torque, max.	0.6 Nm
Clamping range, min.	0.13 mm²
Wire connection cross section AWG, min.	AWG 26
Wire cross-section, solid, min.	0.2 mm2
Wire connection cross-section, finely stranded, min.	0.2 mm2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.2 mm2
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	0.2 mm2
Twin wire-end ferrules, min.	0.5 mm2
Blade size	size PH0

Tightening torque, min.	0.4 Nm
Clamping range, rated connection	1.5 mm²
Clamping range, max.	2.5 mm²
Wire connection cross section AWG, max.	AWG 12
Wire cross-section, solid, max.	2.5 mm2
Wire connection cross section, finely stranded, max.	2.5 mm2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	2.5 mm2
Twin wire-end ferrules, max.	1.5 mm2

Safety-Related Basic Specifications

Device type	A
Safety category	SIL 3

Hardware fault tolerance (HFT)	1
Safety standard	DIN EN 61508

Classifications

ETIM 6.0	EC001449
eClass 9.0	27-37-18-19
eClass 10.0	27-37-18-19

ETIM 7.0	EC001449
eClass 9.1	27-37-18-19

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Insulation Coordination

Rated voltage	300 V
Pollution severity	2
Dielectric strength, Input/Output	4 kVeff / 1 min
Dielectric strength output – output	4 kVeff / 1 min
Dielectric strength to mounting rail	4 kVeff / 1 Min.

Surge voltage category	III
Protection degree	IP20
Creepage and clearance distance input – output	≥ 5.5 mm
Creepage and clearance distance output – output	≥ 5.5 mm
Impulse withstand voltage	6 kV (1.2/50 µs)

Temperatures

Humidity	40 °C / 93 % rel. humidity, no condensation
Operating temperature, min.	-25 °C
Storage temperature, min.	-40 °C
Storage temperature	-40 °C...85 °C
