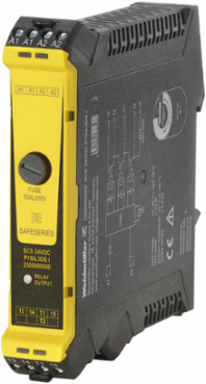

Weidmuller 2500980000 SCS 24VDC P1SIL3DS I
- MPN: 2500980000
- PPN: WDM-2500980000
CAD
$248.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAFESERIES, Safety relay,24 V DC (16...36 V DC), , Max. switching current, internal fuse : 5 A, SIL 3, EN 61508:2010
Documentation & Downloads
Specifications
General Data
| Rail | TS 35 |
|---|---|
| Resistance to vibration | DNVGL-CG-0339, class A |
| Colour | black, yellow |
|---|

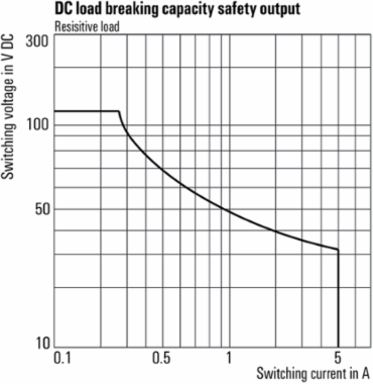

Output (Safety Circuit)
| Contact base material | AgNi |
|---|---|
| Max. permitted switching voltage | 250 V AC / 30 V DC |
| Max. switching current, internal fuse | 5 A |
| Max. switching capacity | 2000 VA |
| External back-up fuse | 5 A time lag |
| Switch-on time | ≤ 25 ms |
| Min. switching capacity | 10 mA @ 12 V |
| Contact design | NO contact |
|---|---|
| Max. permitted switching current | 5 A |
| Max. switching current, external fuse | 5 A |
| Internal fuse | 5 A time-lag |
| Short circuit resistance | No |
| Switch-off time | ≤ 30 ms |
Approvals
| Approvals | CE, CULUS, EAC, FUSAFETY |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|

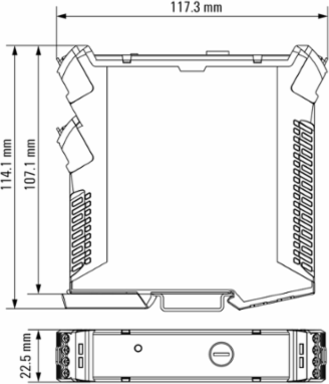

Dimensions And Weights
| Width | 22.5 mm |
|---|---|
| Height | 117.3 mm |
| Depth | 114.1 mm |
| Net weight | 0.001 g |
| Width (inches) | 0.886 inch |
|---|---|
| Height (inches) | 4.618 inch |
| Depth (inches) | 4.492 inch |
Input (Safety Circuit)
| Rated control voltage | 24 V DC (16...36 V DC) |
|---|---|
| Status indicator | LED yellow |
| Current consumption | 50 mA |
|---|---|
| Protective circuit | Reverse polarity protection, Free-wheeling diode |
Connection Data
| Wire connection method | Screw connection |
|---|---|
| Tightening torque, max. | 0.6 Nm |
| Clamping range, min. | 0.13 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire cross-section, solid, min. | 0.2 mm2 |
| Wire connection cross-section, finely stranded, min. | 0.2 mm2 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.2 mm2 |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.2 mm2 |
| Twin wire-end ferrules, min. | 0.5 mm2 |
| Blade size | size PH0 |
| Tightening torque, min. | 0.4 Nm |
|---|---|
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire cross-section, solid, max. | 2.5 mm2 |
| Wire connection cross section, finely stranded, max. | 2.5 mm2 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2.5 mm2 |
| Twin wire-end ferrules, max. | 1.5 mm2 |
Safety-Related Basic Specifications
| Device type | A |
|---|---|
| T | 12 Years |
| Safety standard | EN 61508:2010 |
| Hardware fault tolerance (HFT) | 2 |
|---|---|
| Safety category | SIL 3 |
Classifications
| ETIM 6.0 | EC001449 |
|---|---|
| eClass 9.0 | 27-37-18-19 |
| eClass 10.0 | 27-37-18-19 |
| ETIM 7.0 | EC001449 |
|---|---|
| eClass 9.1 | 27-37-18-19 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Insulation coordination according to | EN 61010-2-201:2013 + AC:2013 |
|---|---|
| Surge voltage category | III |
| Protection degree | IP20 |
| Dielectric strength, Input/Output | 3.51 kVeff/5 s |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Rated voltage | 300 V |
|---|---|
| Pollution severity | 2 |
| Type of isolation at input and output | reinforced insulation |
| Creepage and clearance distance input – output | ≥ 6 mm |
Temperatures
| Humidity | 95 %, no condensation |
|---|---|
| Operating temperature, min. | -25 °C |
| Storage temperature, min. | -40 ° C |
| Storage temperature | -40 ° C...85 ° C |
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 85 ° C |
| Operating temperature | -25 °C...50 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E141197 |
|---|
Further Details Of Approvals / Standards
| Standards | EN 61010-2-201:2013 + AC:2013, EN 61326-1:2013, EN 61326-3-1:2008, EN 61326-3-2:2008 |
|---|
| Certificate no. (cULus) | E141197 |
|---|
